In my post of May-21-2007 Sign-Installation-on-Facade-of-A-School-Building-in-Dearborn-Michigan, I presented a layout of the boxed and the neon signs to be installed.

Here I am going to show the location of the Archway in relation the School building.

I am presenting some pictures of the structure of the Archway where the boxed signs will be mounted.

Also shown here is a closeup of the window where the neon sign is to be mounted.

Contractor Hassane Oseili has applied for the building permit -- I will post the drawing that was submitted with the building permit application.




Sign-Installation-on-Facade-of-A-School-Building-2-in-Dearborn-Michigan ... Picture 1

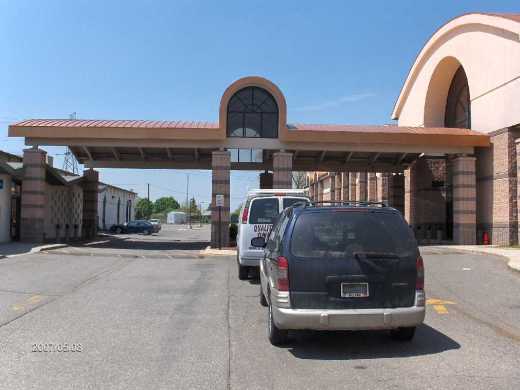

East face of the Archway where sign is to be installed




ANAND Enterprises project QuaO1-201 Sign-Installation-on-Facade-of-A-School-Building-2-in-Dearborn-Michigan

Sign-Installation-on-Facade-of-A-School-Building-2-in-Dearborn-Michigan ... Picture 2

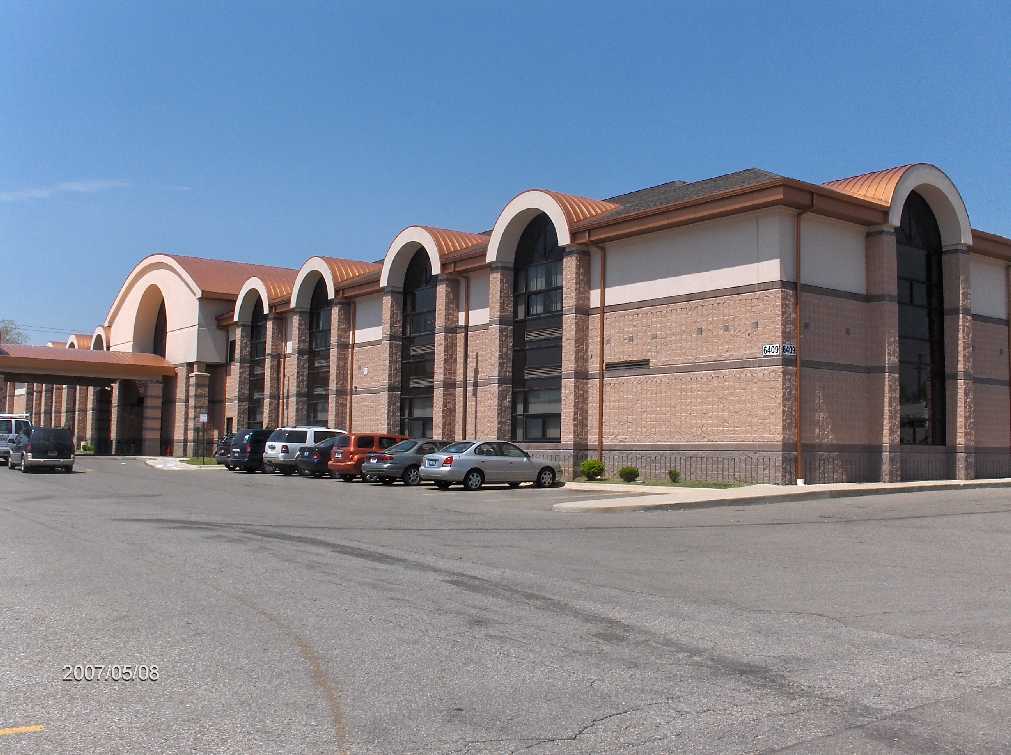

to the left is the East face of Archway and to the right is the South face of the School building




ANAND Enterprises project QuaO1-201 Sign-Installation-on-Facade-of-A-School-Building-2-in-Dearborn-Michigan

---

Sign-Installation-on-Facade-of-A-School-Building-2-in-Dearborn-Michigan ... Picture 3

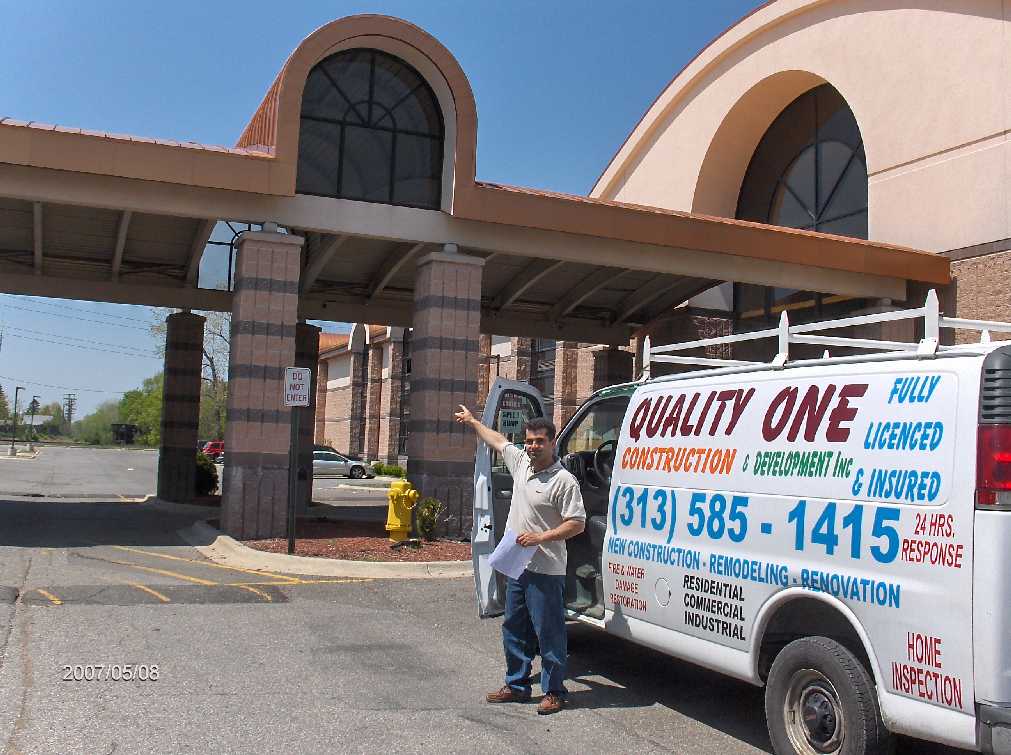

Hassane Oseili of Quality One Construction pointing to the Archway




ANAND Enterprises project QuaO1-201 Sign-Installation-on-Facade-of-A-School-Building-2-in-Dearborn-Michigan

---

Sign-Installation-on-Facade-of-A-School-Building-2-in-Dearborn-Michigan ... Picture 4

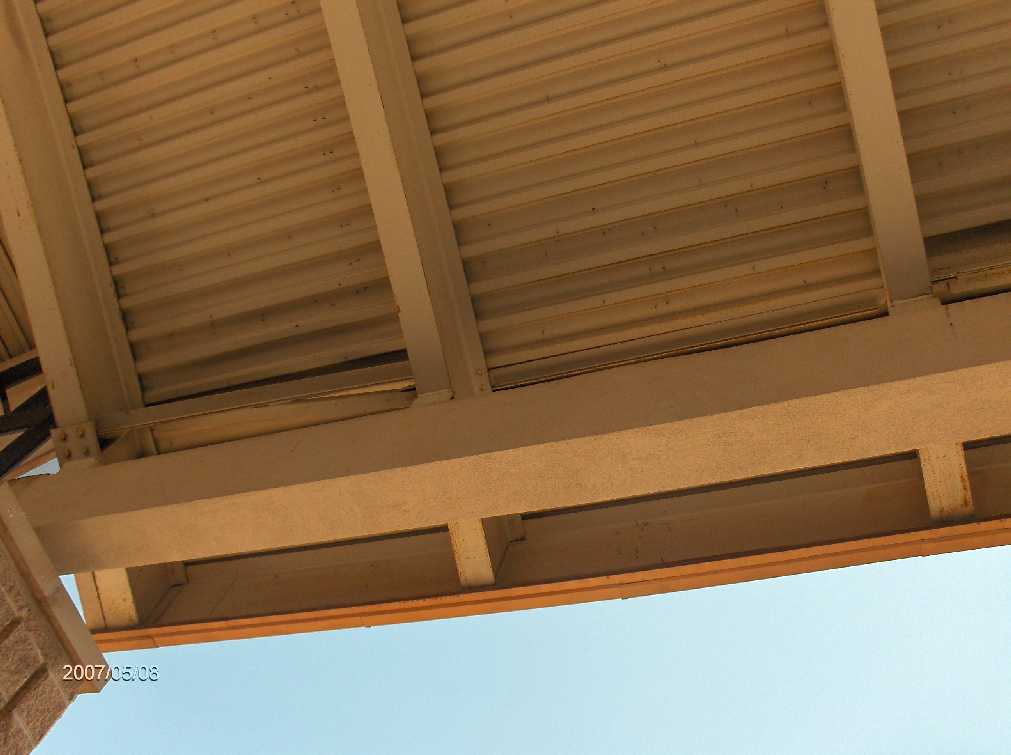

a shot of structural steel of Archway roof and inside of facia where sign is to be mounted




ANAND Enterprises project QuaO1-201 Sign-Installation-on-Facade-of-A-School-Building-2-in-Dearborn-Michigan

---

Sign-Installation-on-Facade-of-A-School-Building-2-in-Dearborn-Michigan ... Picture 5

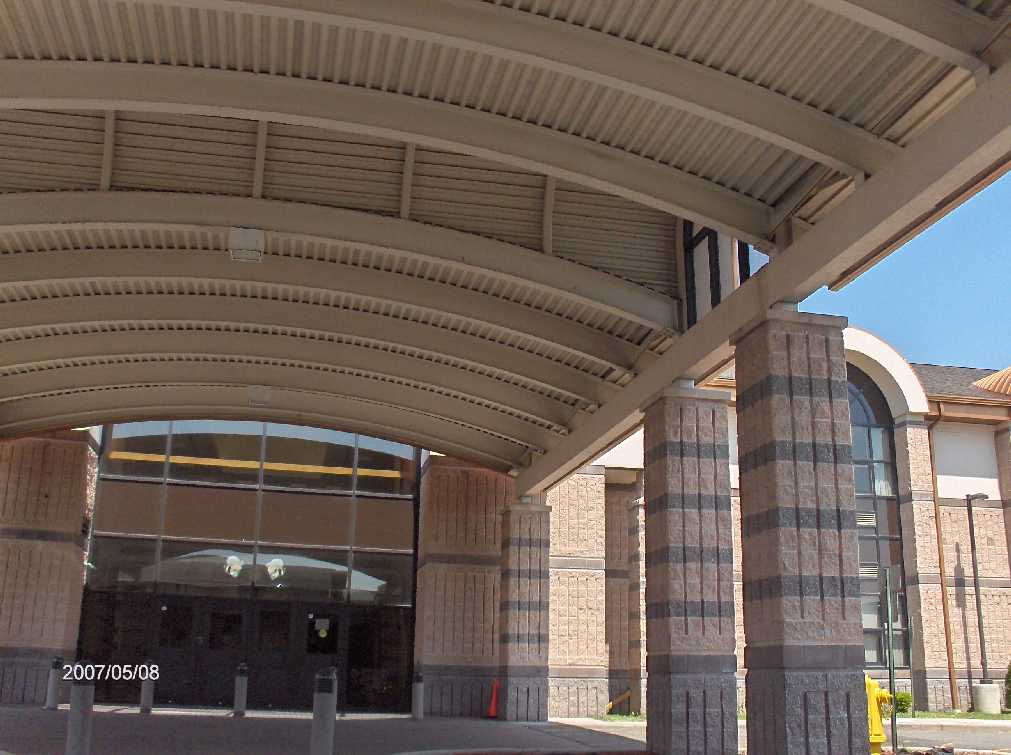

a shot of the soffit of the Archway -- the sign is to be installed on the outside of the East face on the right side of the picture




ANAND Enterprises project QuaO1-201 Sign-Installation-on-Facade-of-A-School-Building-2-in-Dearborn-Michigan

---

Sign-Installation-on-Facade-of-A-School-Building-2-in-Dearborn-Michigan ... Picture 6

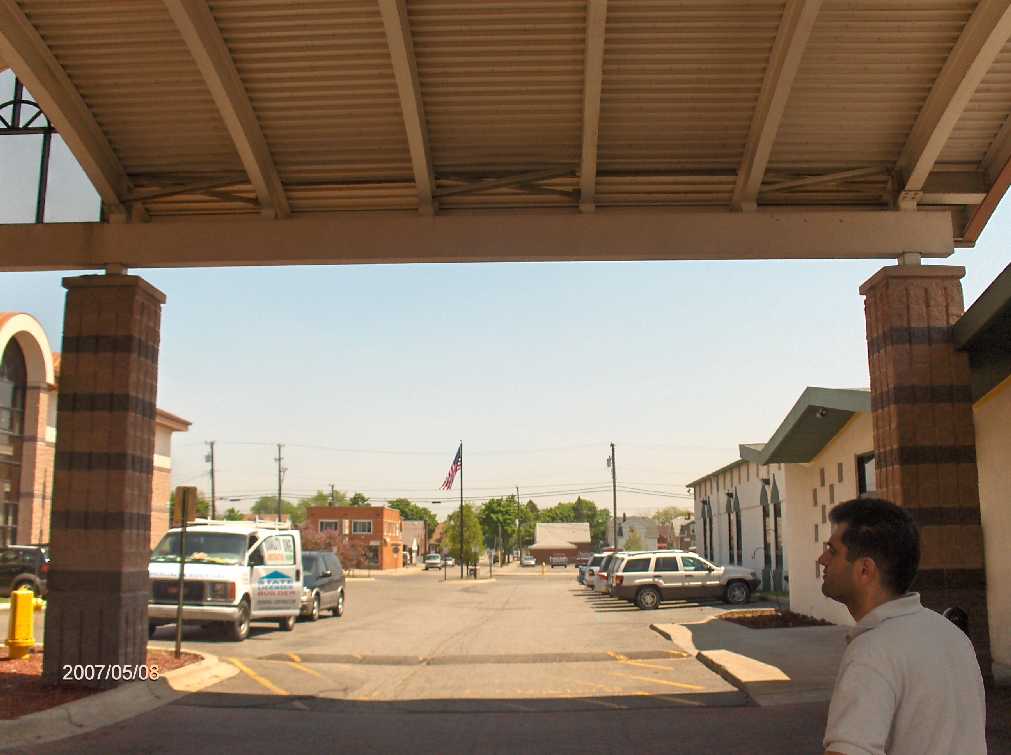

a closeup of soffit -- East face at the South end of Archway




ANAND Enterprises project QuaO1-201 Sign-Installation-on-Facade-of-A-School-Building-2-in-Dearborn-Michigan

---

Sign-Installation-on-Facade-of-A-School-Building-2-in-Dearborn-Michigan ... Picture 7

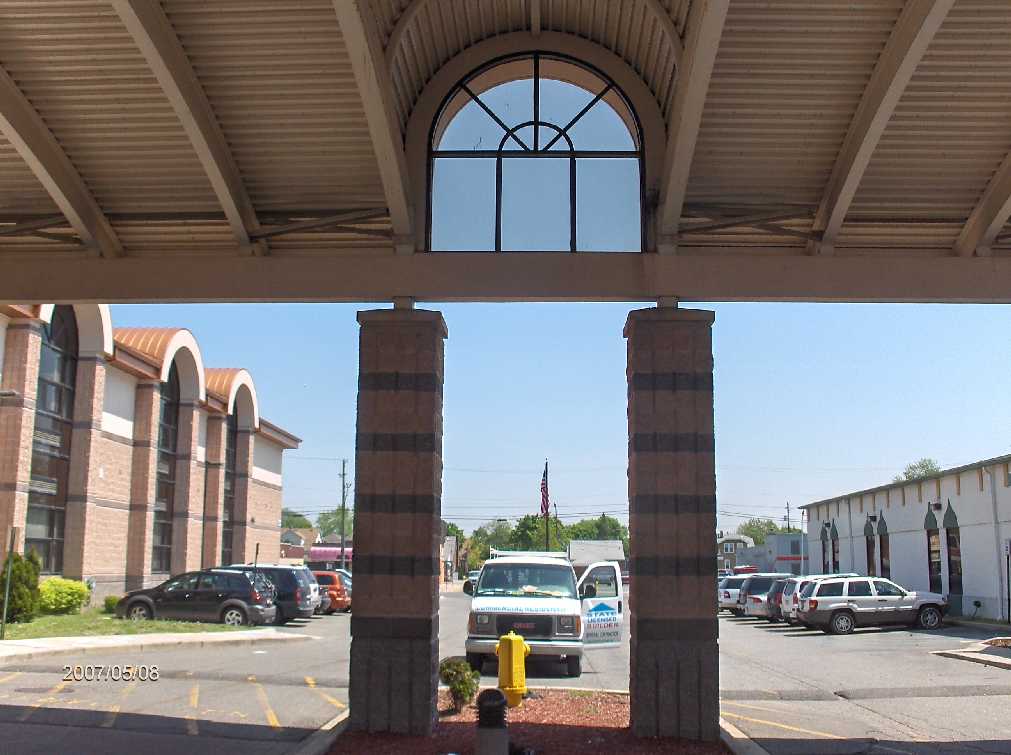

a closeup showing soffit and inside face of window on East face of Archway where neon sign is to be installed




ANAND Enterprises project QuaO1-201 Sign-Installation-on-Facade-of-A-School-Building-2-in-Dearborn-Michigan

---

beginning of Sign-Installation-on-Facade-of-A-School-Building-2-in-Dearborn-Michigan
