The sign will be installed on East face of the archway. The archway roof structure is structural steel. There will be two internally lit boxes -- one on the North side of the archway and one on the South side. Additionally there will be a neon sign in the center window.
I am going to fasten the boxes to the structural steel beam of the archway roof and I am going to fasten the acrylic plate on which the neon sign will be mounted to the window mullions.

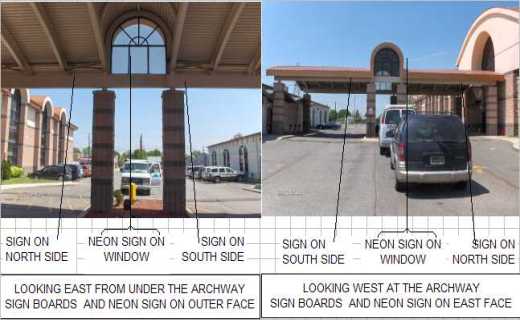

In the following I present a schematic of the layout of the sign. I will present more pictures and details in another post.
Sign-Installation-on-Facade-of-A-School-Building-in-Dearborn-Michigan ... Picture 1
ANAND Enterprises project QuaO1-201 Sign-Installation-on-Facade-of-A-School-Building-in-Dearborn-Michigan
