Second-Floor-Structural-Arrangement-And-Member-Design-MAP_1-103

Project: MAP_1-103-second
from our portfolio of Recent Projects

Our Recent-Projects Include New Construction As-Well-As Addition and Renovation of House, Commercial, Condo, Light-Industrial, Multi-Family Buildings, ...

Second floor of the building is wood deck over woood joists supported over steel beams and columns. For floor joists the maximum span is 20 ft. Tributary area for loading on the steel beam from floor joists is 10 ft, for steel beams the larger span in 31 ft, and the Floor height is nominally 10 ft.

Picture 1 shows the structural arrangement of the second floor support members.

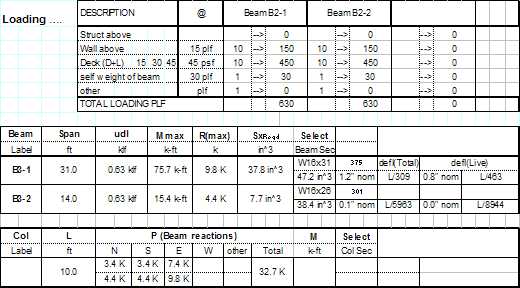

Picture 2 shows a summary of the load computations, and the design of the second floor support members.

See Roof-Structural-Arrangement-And-Member-Design-MAP_1-103

and First-Floor-Structural-Arrangement-And-Member-Design-MAP_1-103

and Foundation-Structural-Arrangement-And-Member-Design-MAP_1-103




Second-Floor-Structural-Arrangement-And-Member-Design-MAP_1-103 ... Picture 1

Second-Floor-Structural-Arrangement-And-Member-Design-MAP_1-103 -Picture-1


ANAND Enterprises project Second-Floor-Structural-Arrangement-And-Member-Design-MAP_1-103





Second-Floor-Structural-Arrangement-And-Member-Design-MAP_1-103 ... Picture 2

Second-Floor-Structural-Arrangement-And-Member-Design-MAP_1-103 -Picture-2


ANAND Enterprises project Second-Floor-Structural-Arrangement-And-Member-Design-MAP_1-103



beginning of Second-Floor-Structural-Arrangement-And-Member-Design-MAP_1-103
