Project: MAP_1-103-roof
from our portfolio of Recent Projects

Our Recent-Projects Include New Construction As-Well-As Addition and Renovation of House, Commercial, Condo, Light-Industrial, Multi-Family Buildings, ...

Here we are looking at a building with a flat roof deck over woood joists supported over steel beams and columns. For the wood deck larger span is 20 ft; for the steel Wide Flange beam, the larger span in 31 ft. Floor heights are nominally 10 ft.

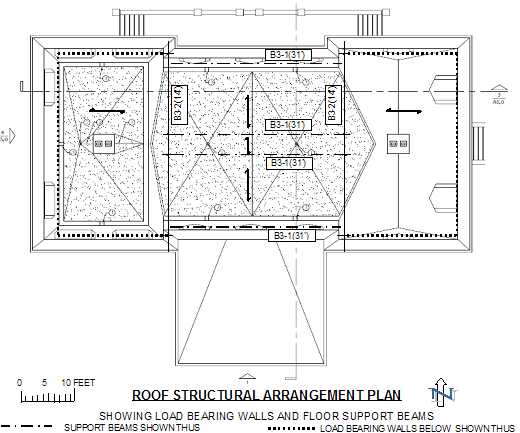

Picture 1 shows the structural arrangement of the roof support members.

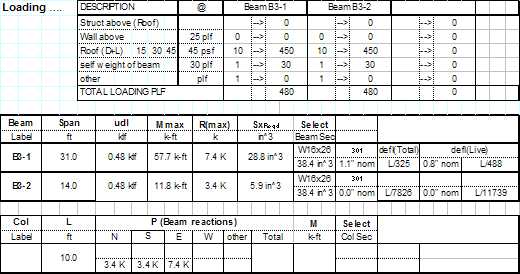

Picture 2 shows a summary of the load computations, and the design of the roof support members.

See Second-Floor-Structural-Arrangement-And-Member-Design-MAP_1-103

and First-Floor-Structural-Arrangement-And-Member-Design-MAP_1-103

and Foundation-Structural-Arrangement-And-Member-Design-MAP_1-103

Roof-Structural-Arrangement-And-Member-Design-MAP_1-103 ... Picture 1


ANAND Enterprises project Roof-Structural-Arrangement-And-Member-Design-MAP_1-103

Roof-Structural-Arrangement-And-Member-Design-MAP_1-103 ... Picture 2


ANAND Enterprises project Roof-Structural-Arrangement-And-Member-Design-MAP_1-103

beginning of Roof-Structural-Arrangement-And-Member-Design-MAP_1-103
