Rehabilitating-Existing-Building-2-in-Highland-Park-Michigan
|
In my Jan-26-2007 post on Rehabilitating-Existing-Building-in-Highland-Park-Michigan I had stated that although the building which was previously a Super Market had been lying vacant for some time, structurally, the building is in decent shape.

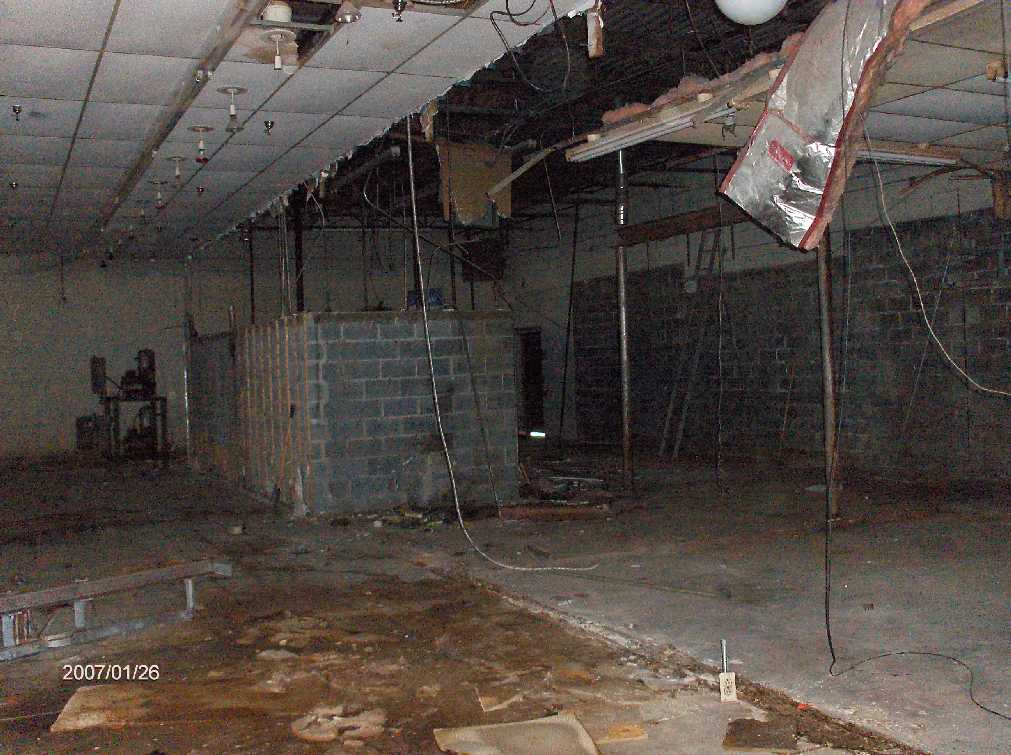

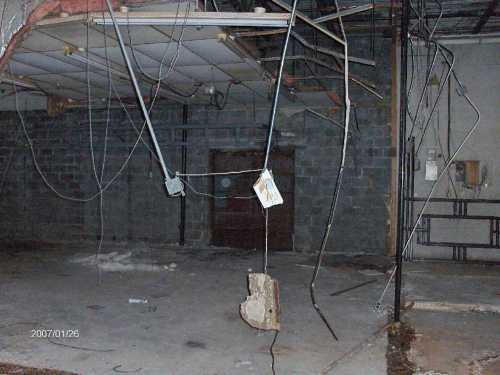

In my last post, I had presented some pictures from my walk-down of the exterior of the building. In this post, I am going to discuss my inspection of the interior of the building.

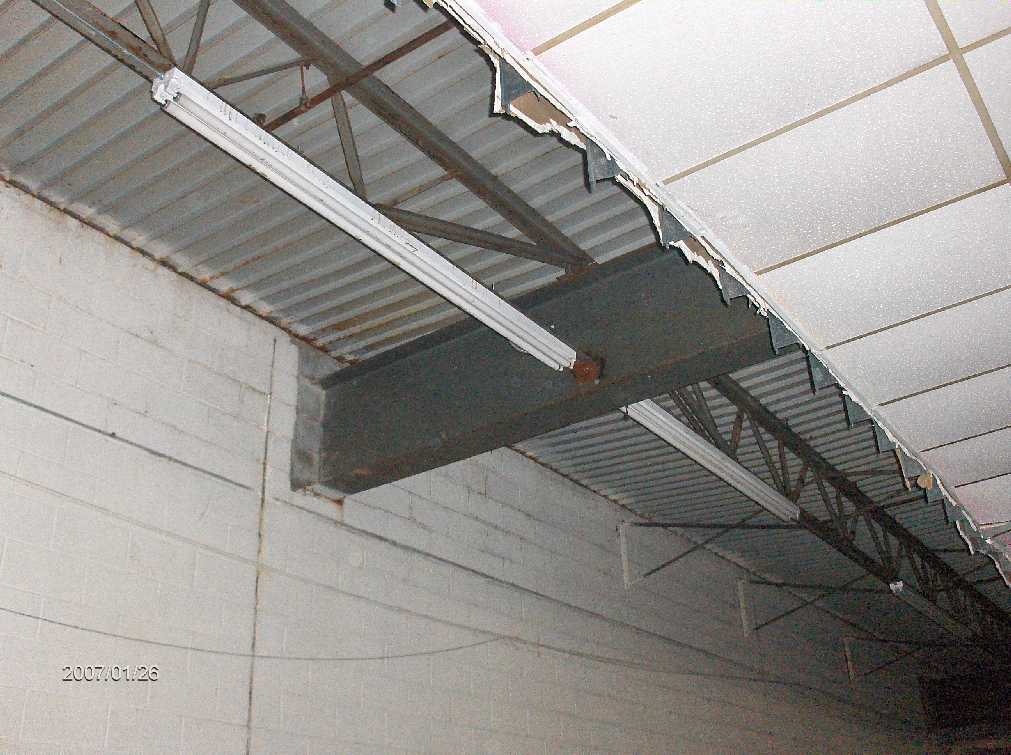

The building is nominally 124 ft by 110 ft. The exterior walls are 12" concrete block masonry faced with brick on the outside. There are 4 Nos. 6" dia pipe columns structurally making it into 3 bays on each side. The building has a flat metal deck roof supported on steel beams in the interior and on block masonry walls on the outside.
I present here some pictures of the interior framing of the building.

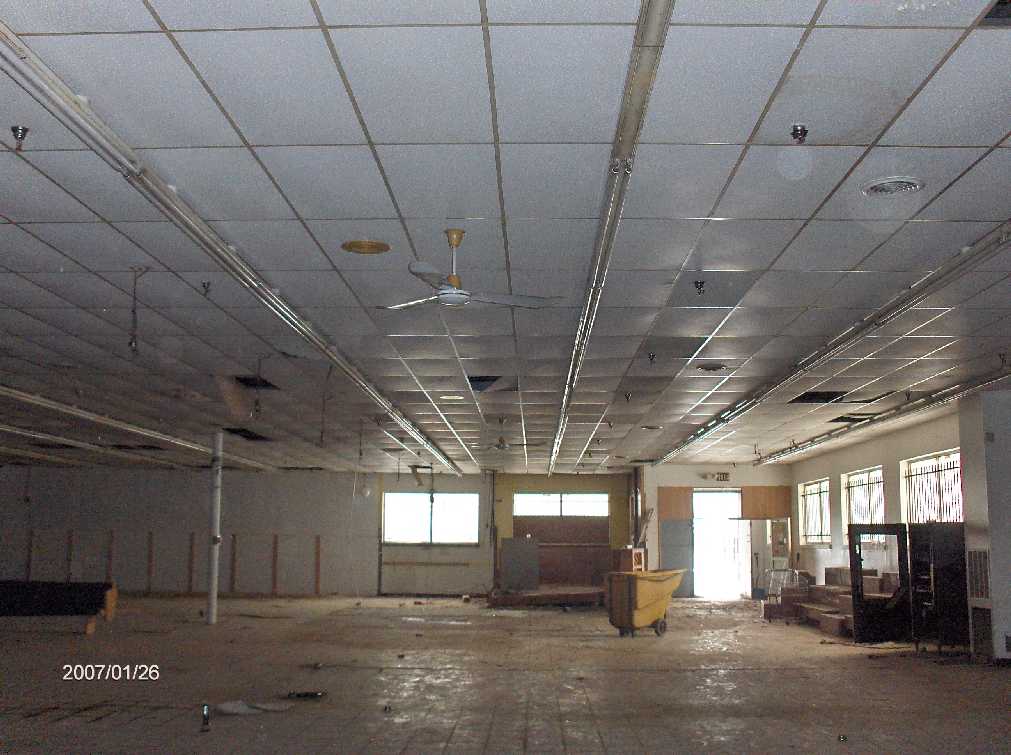

Picture_1
ANAND Enterprises project RhoG1-103 Rehabilitating-Existing-Building-2-in-Highland-Park-Michigan

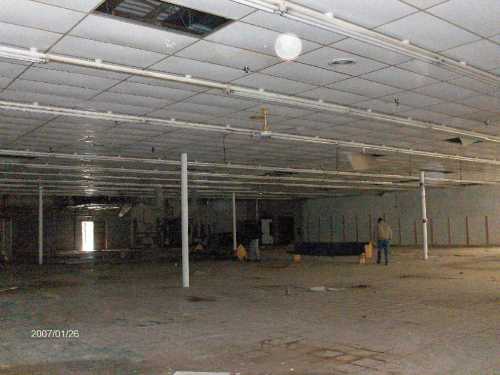

Picture_2
ANAND Enterprises project RhoG1-103 Rehabilitating-Existing-Building-2-in-Highland-Park-Michigan

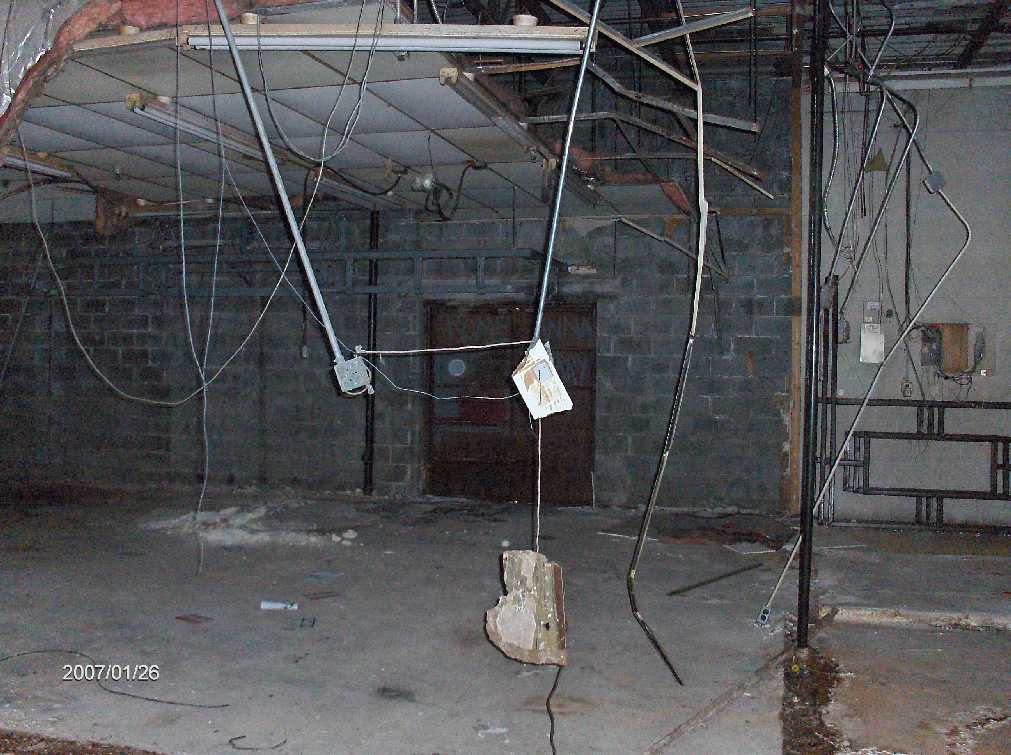

Picture_3
ANAND Enterprises project RhoG1-103 Rehabilitating-Existing-Building-2-in-Highland-Park-Michigan

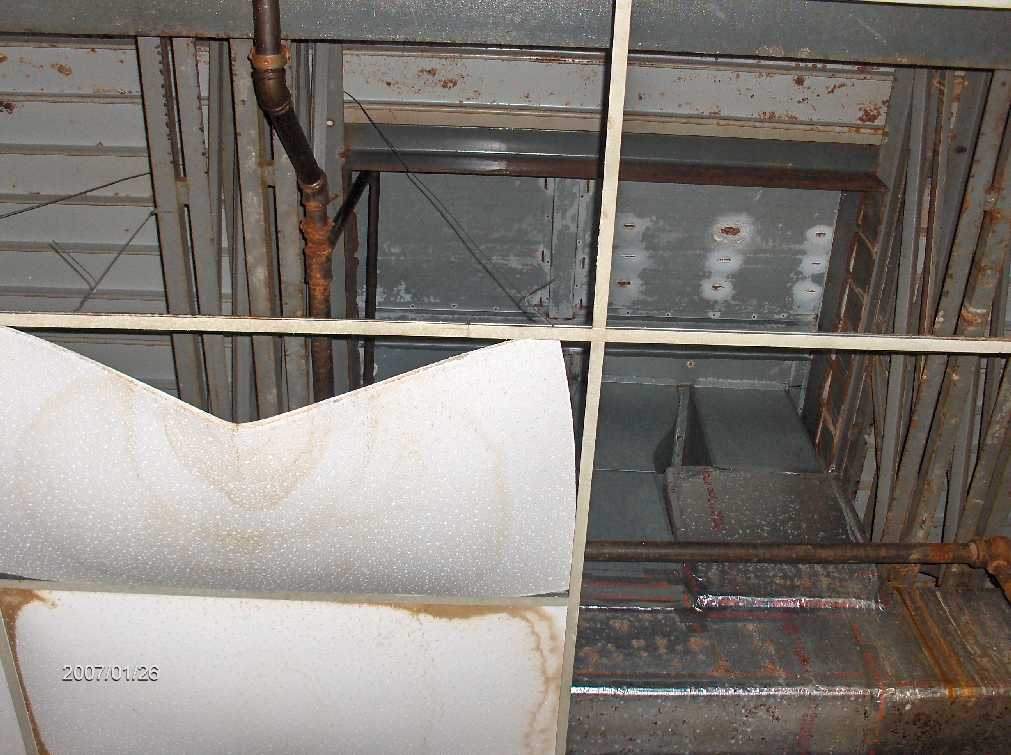

Picture_4
showing the doubled up Joists on both sides to trim the opening for the Roof Top Unit
ANAND Enterprises project RhoG1-103 Rehabilitating-Existing-Building-2-in-Highland-Park-Michigan
Picture_5
ANAND Enterprises project RhoG1-103 Rehabilitating-Existing-Building-2-in-Highland-Park-Michigan
Picture_6
ANAND Enterprises project RhoG1-103 Rehabilitating-Existing-Building-2-in-Highland-Park-Michigan
Picture_7
ANAND Enterprises project RhoG1-103 Rehabilitating-Existing-Building-2-in-Highland-Park-Michigan

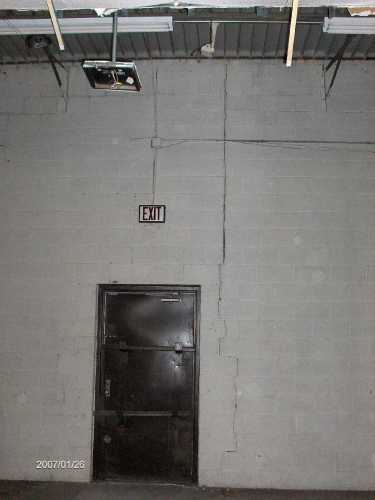

Picture_8
showing an incomplete Control Joint on the right side of the exit door
ANAND Enterprises project RhoG1-103 Rehabilitating-Existing-Building-2-in-Highland-Park-Michigan
Picture_9
ANAND Enterprises project RhoG1-103 Rehabilitating-Existing-Building-2-in-Highland-Park-Michigan

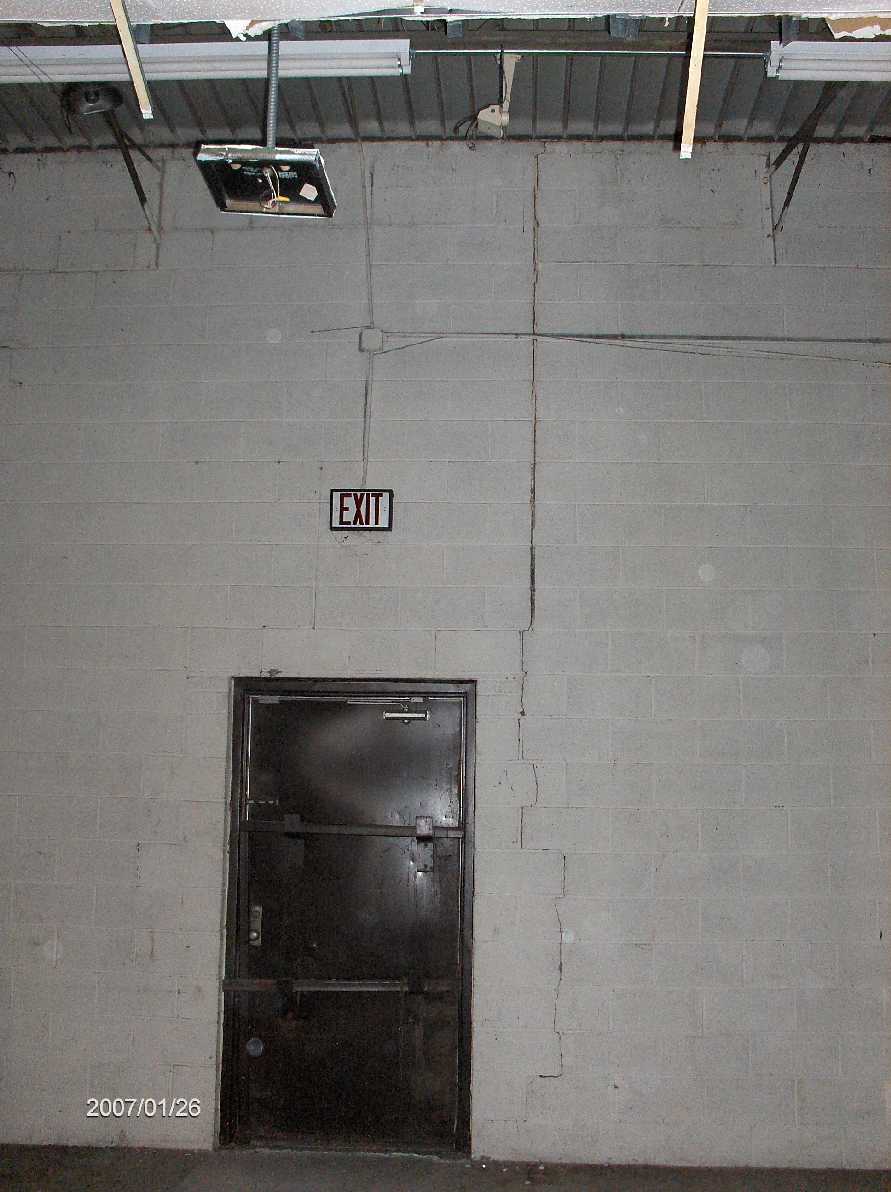

Picture_10
showing a crack in the block masonry wall to the left where there should have ben a Control Joint
ANAND Enterprises project RhoG1-103 Rehabilitating-Existing-Building-2-in-Highland-Park-Michigan
