Project EneE1OmaE1-101
from our portfolio of Recent Projects

Our Recent-Projects Include New Construction As-Well-As Addition and Renovation of House, Commercial, Condo, Light-Industrial, Multi-Family Buildings, ...


In my post ICF-House-New-Construction-Framing-Issues-Project-EneE1OmaE1-101, I talked about the ICF Headers, and Joist Layout For First Floor.

Here, let us talk about Steel Floor Framing and Attachment of Rim Joists to ICF Walls ...

Steel Floor Framing

person interviewed: David Dotson of Steel Beams Inc

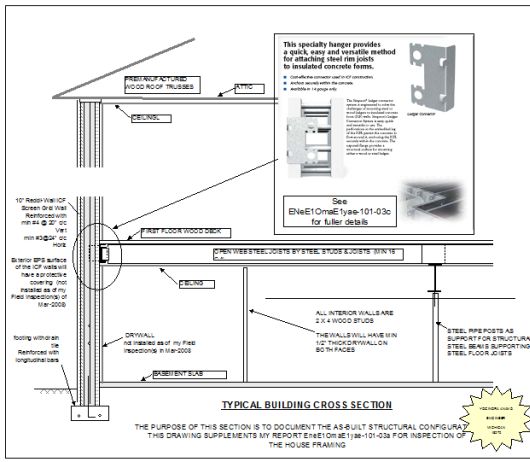

The steel floor joists are fastened with screws to rim joists which in turn are fastened to concrete of the ICF walls.

related document: EneE1OmaE1yae-101-03b and EneE1OmaE1yae-101-03c

Attachment of Rim Joist to ICF walls

person interviewed: David Dotson of Steel Beams Inc

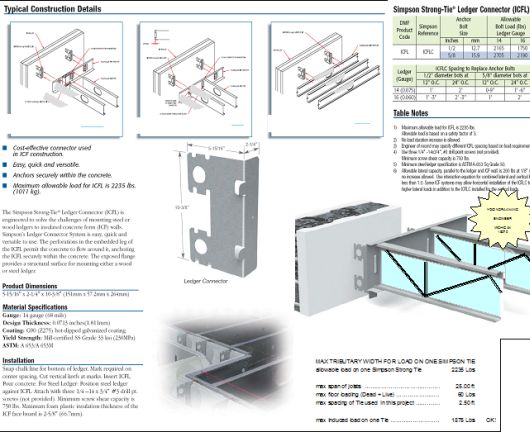

The rim joists are fastened with screws to Simpson Strong Tie (or equivalent attachment) that is embedded in concrete of ICF wall.

related document: EneE1OmaE1yae-101-03c

The documents EneE1OmaE1yae-101-03b and EneE1OmaE1yae-101-03c are presented here as Figures 1 and 2.

In the next post I will talk about the General Inspection of Structural Items

ICF-House-New-Construction-Framing-Issues-Part2-Project-EneE1OmaE1-101 ... Figure 1


ANAND Enterprises project EneE1OmaE1-101

ICF-House-New-Construction-Framing-Issues-Part2-Project-EneE1OmaE1-101 ... Figure 2


ANAND Enterprises project EneE1OmaE1-101

beginning of ICF-House-New-Construction-Framing-Issues-Part2-Project-EneE1OmaE1-101
