Front-Entrance-With-Handicap-Ramp_Building-in-Wayne-Michigan
Project US_A1-101 ... May-06-2007 Update
from our portfolio of Recent Projects

Our Recent-Projects Include New Construction As-Well-As Addition and Renovation of House, Commercial, Condo, Light-Industrial, Multi-Family Buildings, ...

In my post of Apr-02-2007 post on this project Framing-for-Suspended-Fan-Ceiling-2_Building-in-Wayne-Michigan , I showed you the progress pictures of the fan ceiling.

In this post, I am posting a drawing of the front entrance with handicap ramp. It makes for a pretty interesting layout of the front entrance to tie in the handicap ramp from the handicap parking space and merge it with the front entrance.

I had discussed the layout with the City of wayne Building Officials -- and based on the discussion I have incorporated a curb and gutter section at the blacktop interface.

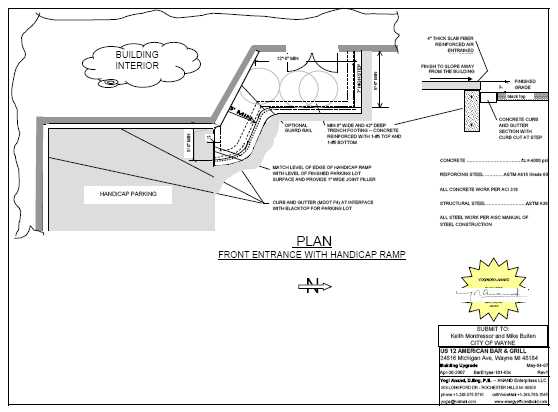

Following is the schematic drawing of the front entrance with handicap ramp.




Front-Entrance-With-Handicap-Ramp_Building-in-Wayne-Michigan ... Picture 1




ANAND Enterprises project BarE1-101 Front-Entrance-With-Handicap-Ramp_Building-in-Wayne-Michigan


beginning of Front-Entrance-With-Handicap-Ramp_Building-in-Wayne-Michigan May-06-2007 Update
