I had posted the drawing for the design of Front-Entrance-With-Handicap-Ramp_Building-in-Wayne-Michigan in my post of May-06-2007.
Based on discussions with the Civil Engineer at City of Wayne Building Department, we should be able to simplify the layout of the handicap ramp -- so while it meets the necessary requirements, the new layout should be easier to build as well.
In the following I present the revised layout of the Front Entrance and the handicap ramp.

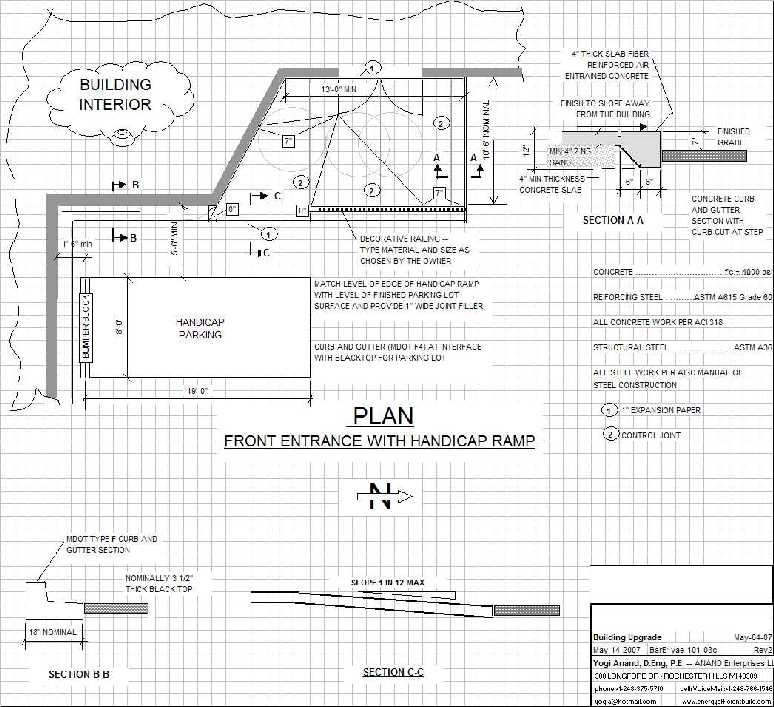

Front-Entrance-With-Handicap-Ramp-3_Building-in-Wayne-Michigan ... Picture 1
ANAND Enterprises project BarE1-101 Front-Entrance-With-Handicap-Ramp-3_Building-in-Wayne-Michigan
