Insulation-Under-Basement-Slab_for-Stehr-House-in-Highland-Twp-Michigan
Sep-18-2006 Update
from our portfolio of Recent Projects

Our Recent-Projects Include New Construction As-Well-As Addition and Renovation of House, Commercial, Condo, Light-Industrial, Multi-Family Buildings, ...

In our last update we talked about DrainTile on Inside for Stehr House in Highland Twp Michigan
Sep-13-2006 Update

We are using radiant heat tubing in the basement slab for the STEHR house. To insulate the base of the slab, we are using 2" thick styrofoam. We are also using Welded Wire Fabric as reinforcement for the concrete slab and we will tie down the radiant heat tubing to the Welded Wire Fabric.

The placement of the styrofoam insulation had to be coordinated with the placement of the Welded Wire Fabric to hold the styrofoam down ad prevent it from being blown away in case of wind gust or storm.

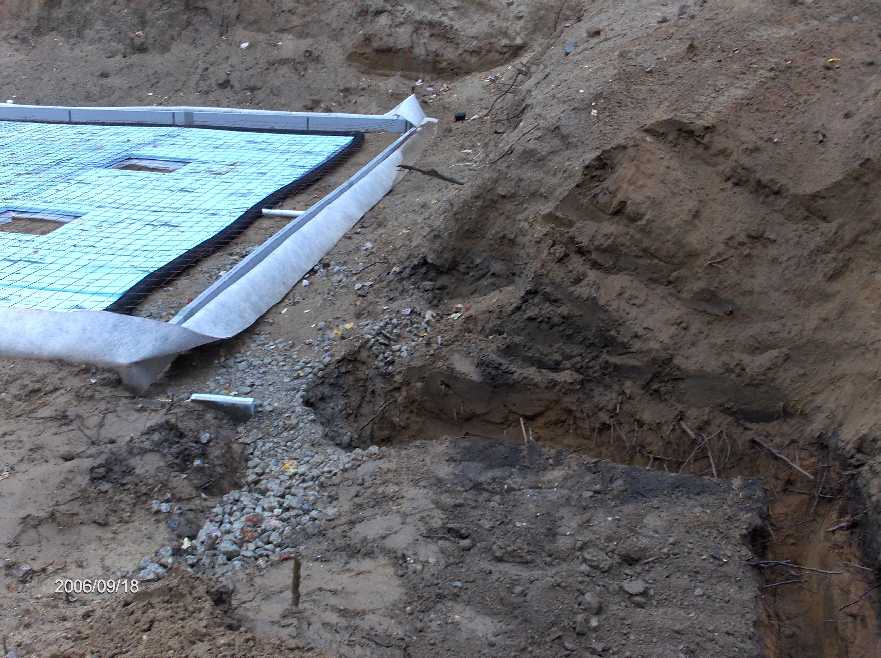

A shot of 2" thick slab of styrofoam over 6 mil vapor barrier. The styrofoam slabs are weighted down by the Welded Wire Fabric to pevent the styrofoam from being blown away in case of a wind gust or storm ... Picture 1



ANAND Enterprises project SteG2yae-101 New ICF House for Gary and Pam Stehr in Highland Township Michigan

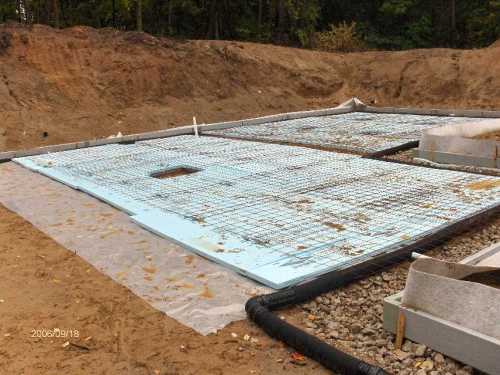

Another shot of the styrofoam insulation. Note the bleeder from the drain tile on the inside to the Form-A-Drain on the outside edge of the slab ... Picture 2



ANAND Enterprises project SteG2yae-101 New ICF House for Gary and Pam Stehr in Highland Township Michigan
