In our discusion of

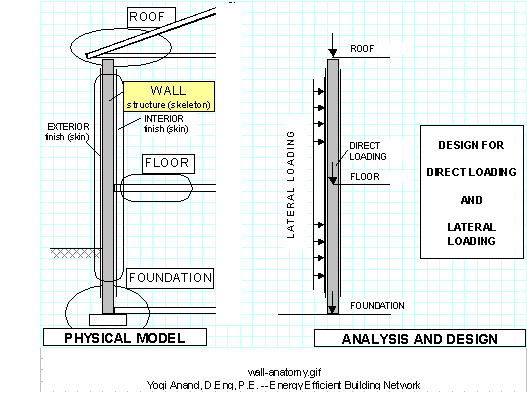

the antomy of a building wall
we talked about wall structure as being the skeleton. Typically, the load bearing walls support the superstructure.
The load bearing walls, along with any posts or columns support the loading from the floors and the roof of your dream home and
transfer it to be safely carried by mother earth.
The exterior walls also constitute a major part of the building envelope.

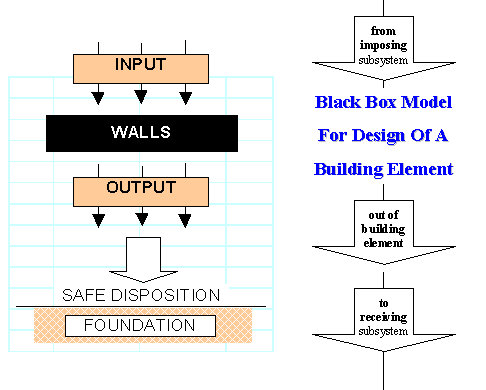

Input
Loads from the superstructure support elements -- such as the roof trusses, the floor beams, non-load bearing partition walls, ...Walls
As I discussed in the structural member configuration the wall structure has to be designed in such a way that it can safely transfer the input loads to the building foundation.Ultimately, all the loding imposed on the walls has to be transfered to the building foundation and then to mother earth.
We need to ensure that the wall structure is capable of carrying and transfering the input loading safely to the supporting medium downstream.
The design of the wall-structure will depend on the major constituent materials as we discussed in the anatomy of a building wall. The more common wall types today are ...
- ICF(insulating concrete form) Walls
- SIP (structural insulated panel) Walls
- concrete masonry unit block wall
- cast-in-place concrete walls
- precast concrete walls
- wood-stud (stick) Walls
- metal-stud (stick) Walls
- ....
Output
In designing the load-bearing walls as a system, we have to ensure that the output loading from the walls can be safely carried by the supporting medium, the foundation.
beginning of Design-Build-Wall-Structure
back to our home page
For further information or help with your specific building walls project or part of it, such as ...
- ICF(insulating concrete form) Walls
- SIP (structural insulated panel) Walls
- concrete masonry unit block wall
- cast-in-place concrete walls
- precast concrete walls
- wood-stud (stick) Walls
- metal-stud (stick) Walls
- ....
