Project RosO1-101
from our portfolio of Recent Projects

Our Recent-Projects Include New Construction As-Well-As Addition and Renovation of House, Commercial, Condo, Light-Industrial, Multi-Family Buildings, ...

Rosie O'Grady's Restaurant & Pub on 23 Mile Road in Chesterfield Twp Michigan -- Building Addition and Upgrading

In the last post we talked about Electrical-Wiring-Installation in the ICF walls of the addition.

The interior walls are mostly metal studs and the floor and roof structure employs light gage open web steel joists. So the fire suppression system sprinkler heads and piping are threaded throught the maze of the light gage metal components. On the south wall of the addition the piping could not be run through the joists, so the piping has been run under the joists and next to the wall -- this area will be be boxed out just below the general ceiling level.

You will notice that the sprinkler heads can be seen by the deep orange color at the base of the head.

Here are some typical pictures of the sprinkler heads and the sprinkler piping -- I will keep you posted with more details as we go along.

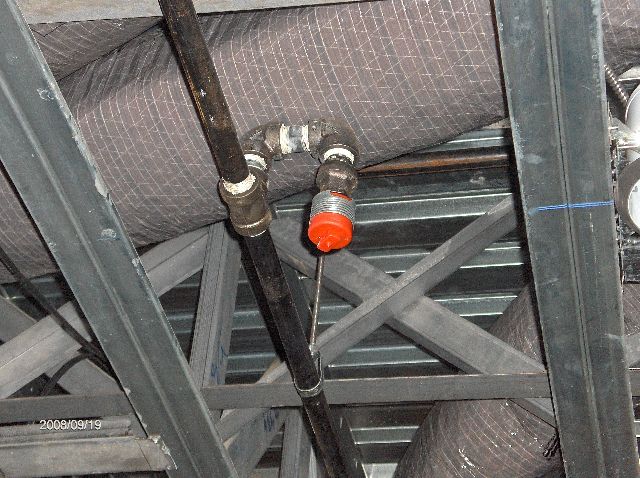

Rosie-O-Gradys_Building-Addition-Sprinkler-Heads-And-Piping-Installation-RosO1-101 ... Picture 1


ANAND Enterprises Project RosO1-101

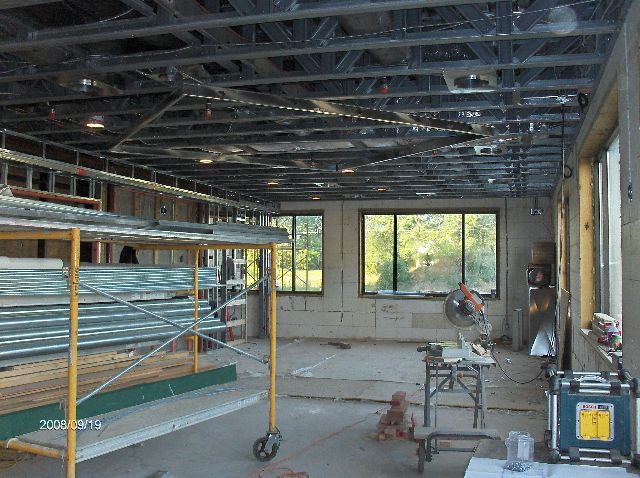

Rosie-O-Gradys_Building-Addition-Sprinkler-Heads-And-Piping-Installation-RosO1-101 ... Picture 2


ANAND Enterprises Project RosO1-101

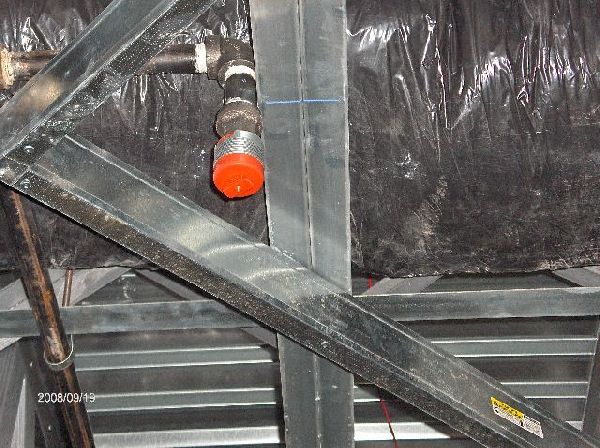

Rosie-O-Gradys_Building-Addition-Sprinkler-Heads-And-Piping-Installation-RosO1-101 ... Picture 3


ANAND Enterprises Project RosO1-101

Rosie-O-Gradys_Building-Addition-Sprinkler-Heads-And-Piping-Installation-RosO1-101 ... Picture 4


ANAND Enterprises Project RosO1-101

Rosie-O-Gradys_Building-Addition-Sprinkler-Heads-And-Piping-Installation-RosO1-101 ... Picture 5


ANAND Enterprises Project RosO1-101
