New-8-Inch-Panel-Wall-And-Footing-To-Existing-8-Inch-Panel-Wall

Project: New-8-Inch-Panel-Wall-And-Footing-To-Existing-8-Inch-Panel-Wall (WalT1yae-102-03c)
from our portfolio of Recent Projects

Our Recent-Projects Include New Construction As-Well-As Addition and Renovation of House, Commercial, Condo, Light-Industrial, Multi-Family Buildings, ...

There is an existing 8 inch panel ICF wall and footing. We are going to add a new 8 inch panel ICF wall and footing.

The footing for the new ICF wall is at a lower level. The soil conditions were such that it was not necessary to provide a stepped footing. I specified doweling in the new wall to the existing wall.

In another post I have discussed Joining-New-4-inch-ICF-Panel-Wall-To-8-inch-ICF-Panel-Wall-In-Place

and Buildblock-8-Ich-Panel-Wall-To-Be-Fastened-To-8-Inch-Panel-Buildblock-Wall-Already-In-Place

and ICF-4-Inch-Panel-Wall-And-Footing-To-Existing-8-Inch-Panel-Wall

I present here some pictures showing both the new and the existing 8 inch panel BuildBlock ICF walls -- I will keep you posted with more progress pictures.

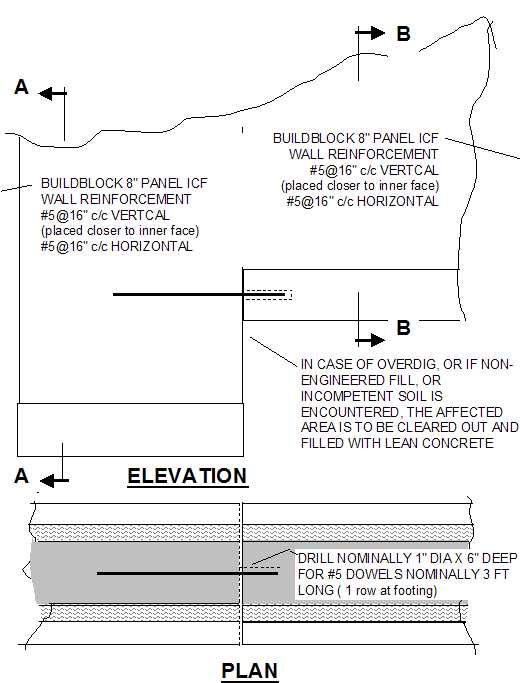

New-8-Inch-Panel-Wall-And-Footing-To-Existing-8-Inch-Panel-Wall ... Picture 1

New-8-Inch-Panel-Wall-And-Footing-To-Existing-8-Inch-Panel-Wall -Picture-1


ANAND Enterprises project New-8-Inch-Panel-Wall-And-Footing-To-Existing-8-Inch-Panel-Wall (WalT1yae-102-03c-eebn)

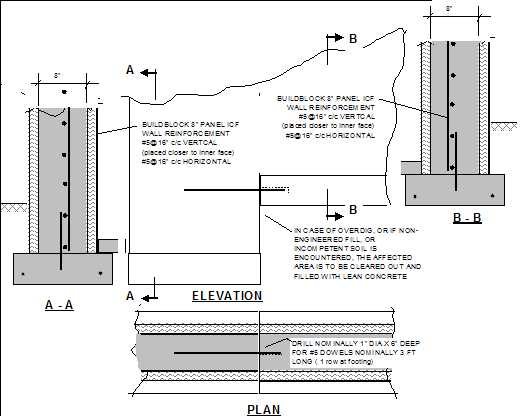

New-8-Inch-Panel-Wall-And-Footing-To-Existing-8-Inch-Panel-Wall ... Picture 2

New-8-Inch-Panel-Wall-And-Footing-To-Existing-8-Inch-Panel-Wall -Picture-2


ANAND Enterprises project New-8-Inch-Panel-Wall-And-Footing-To-Existing-8-Inch-Panel-Wall (WalT1yae-102-03c-eebn)

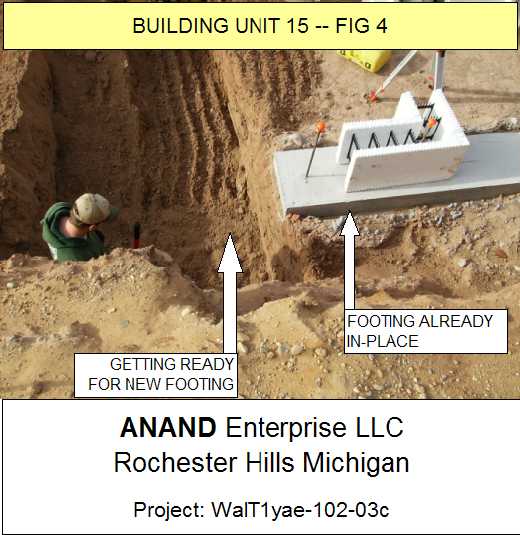

New-8-Inch-Panel-Wall-And-Footing-To-Existing-8-Inch-Panel-Wall ... Picture 3

New-8-Inch-Panel-Wall-And-Footing-To-Existing-8-Inch-Panel-Wall -Picture-3


ANAND Enterprises project New-8-Inch-Panel-Wall-And-Footing-To-Existing-8-Inch-Panel-Wall (WalT1yae-102-03c-eebn)
