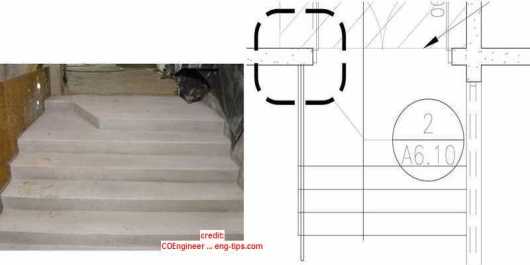

It is an interesting shot (posted by CO Engineer on tek-tips.com) of a drawing of steps with a Detail Designator and a Lead Line.
You will notice on close examination that allegedly the Lead Line for the Detail Designator was mistakenly taken as part of the drawing to build an additional step shaped to match the lead Line.
Well, the title here is befitting ... We need Good Drawings and Contractor With Common Sense.
It is hard to overemphasize the need for clear drawings -- and again one can not over emphasize the need for a smart contractor with a lot of common sense. And let me also add, it is essential to have a team of competent professional working in concert.
Well, what do you think, did it indeed get built like this?
