Project PapJ2-101 ... Mar-01-2007 Update
from our portfolio of Recent Projects

Our Recent-Projects Include New Construction As-Well-As Addition and Renovation of House, Commercial, Condo, Light-Industrial, Multi-Family Buildings, ...

In my Feb-27-2007 post on Light-Gage-Metal-Framing-for-Select-Appurtenances_Building-in-Rochester-Michigan , we talked about framing for the oyster.

In this post, we are going to discuss the framing for the ring -- this is a circular platform that is going to be hung from the joists above. The ring is not only an aesthetically appealing appurtenance, it is also functional in the sense that it will provide for manual access to several service hatches.

The framing for the ring is going to be shop fabricated at Bob Martin's Steel Studs and Joists Inc of Port Huron Michigan and will be field assembled and installed in the field.

The underside and the sides of the ring will be drywalled -- the drywall work will be done under the supervision of Mike, John, and Joe of Modern Drywall.

So, let us look at some pictures of the ring. I wish the pictures would have been a bit sharper to do justice to the appurtenances which are already in place around which the ring frame would be installed.



Light-Gage-Metal-Framing-for-Select-Appurtenances-2_Building-in-Rochester-Michigan ... Picture 1

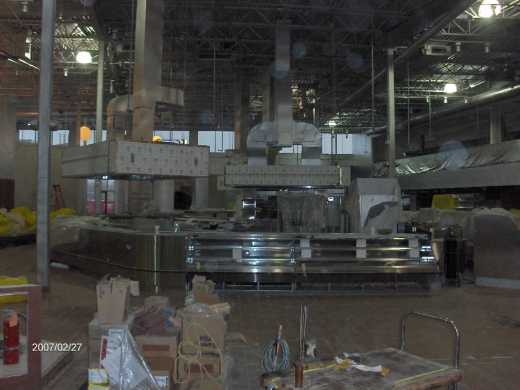

Here is a shot of the existing apputenancea around which the ring framing would be installed.




ANAND Enterprises project PapJ2-101 Light-Gage-Metal-Framing-for-Select-Appurtenances-2_Building-in-Rochester-Michigan


Light-Gage-Metal-Framing-for-Select-Appurtenances-2_Building-in-Rochester-Michigan ... Picture 2

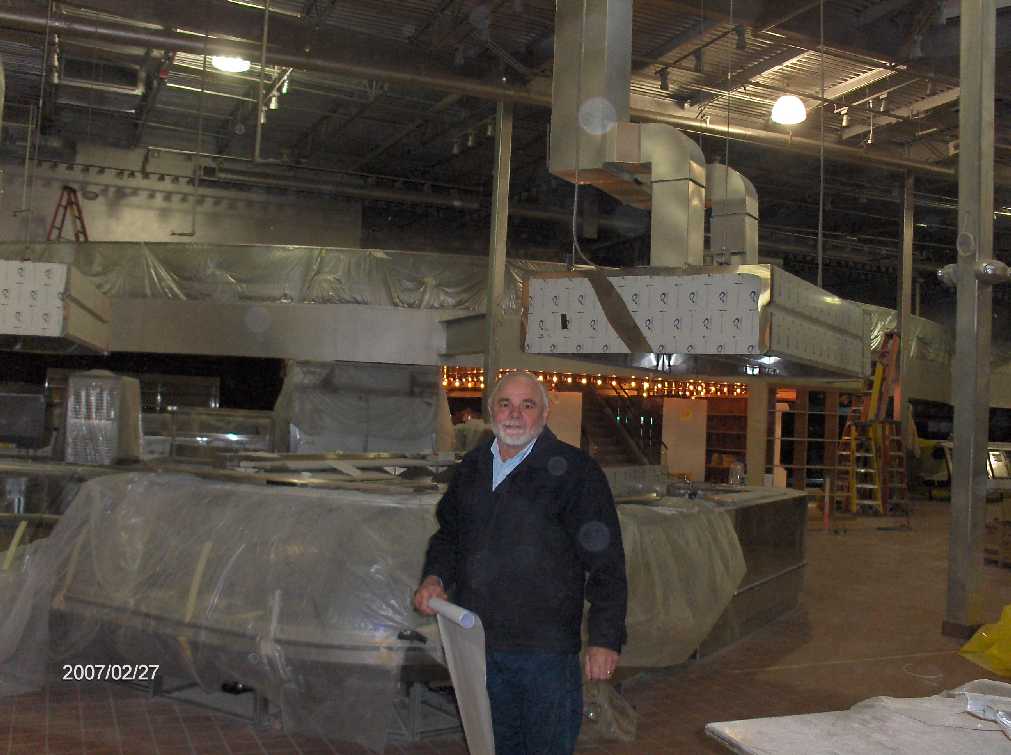

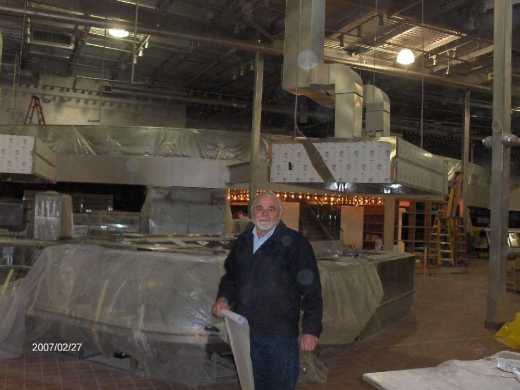

Sorry about the poor picture ... the ring framing would be installed right behind and above where Bob Martin is standing.




ANAND Enterprises project PapJ2-101 Light-Gage-Metal-Framing-for-Select-Appurtenances-2_Building-in-Rochester-Michigan


Light-Gage-Metal-Framing-for-Select-Appurtenances-2_Building-in-Rochester-Michigan ... Picture 3

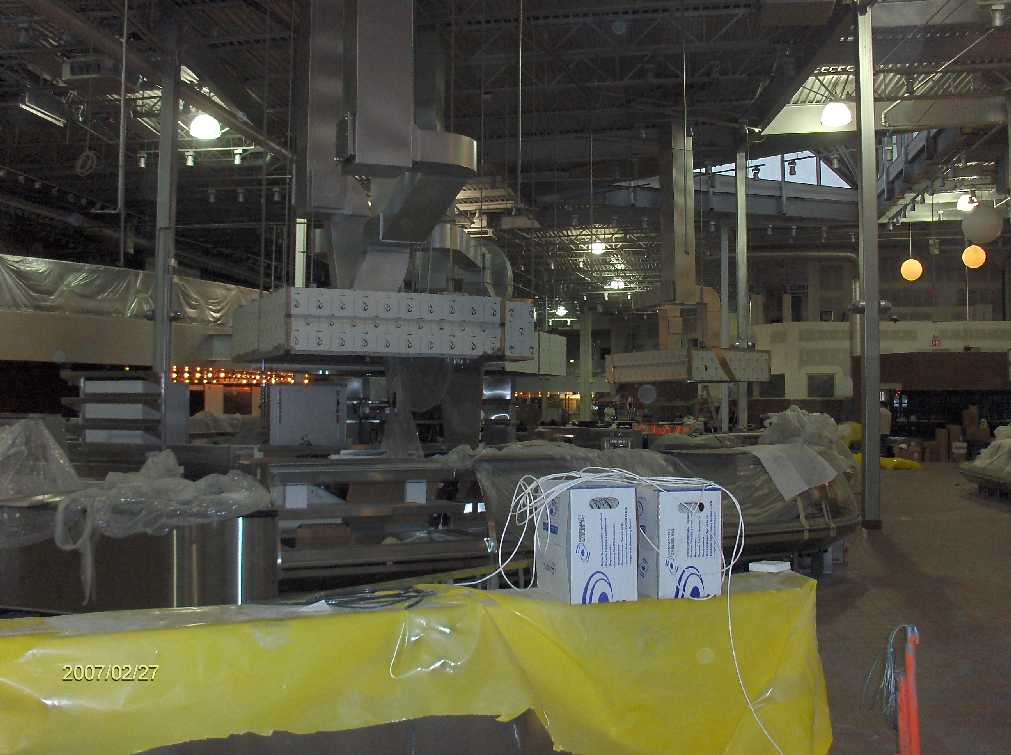

Here is another shot of the existing appurtenances in the vicinity of the proposed location of the ring




ANAND Enterprises project PapJ2-101 Light-Gage-Metal-Framing-for-Select-Appurtenances-2_Building-in-Rochester-Michigan
