Rehabilitation-of-Commercial-Building-3-in-Wayne-Michigan
Project KubD1yae-101 ... Feb-12-2007 Update
from our portfolio of Recent Projects

Our Recent-Projects Include New Construction As-Well-As Addition and Renovation of House, Commercial, Condo, Light-Industrial, Multi-Family Buildings, ...

In Rehabilitation of Commercial Building-2 in Wayne Michigan post of Feb-08-2007, I had described the work that needed to be done to get this building off the City of wayne Michigan Building Department's dangerous building list.

Hassan Oseili is the contractor for the work. One of the work items was to ensure that the concrete block masonry wall that had been constructed on the North side of the building had been doweled to the existing floor slab and footing underneath. Not being able to ensure that the wall had indeed been doweled in, new dowels have been installed. Since the new block wall had not been toothed in, it also needed to be fastened to the existing wall at the East and West ends using a steel plate and through bolts. You will see this work in the pictures I have presented herein.

All the loose wiring has been properly tied up. The hanging ducts have been fastened/strapped. The building still needs to be cleaned up enough to make it into a white box. Depending on the eventual usage of the the building, the new occupant will need to pull permit for what would need to be done for the intended use of the building.

The owners want to remove the debris from inside the building and do the needed cleanup themselves. We will call the Building Official to inspect that the needed work has indeed been completed and we can turn the building back over to the owners.

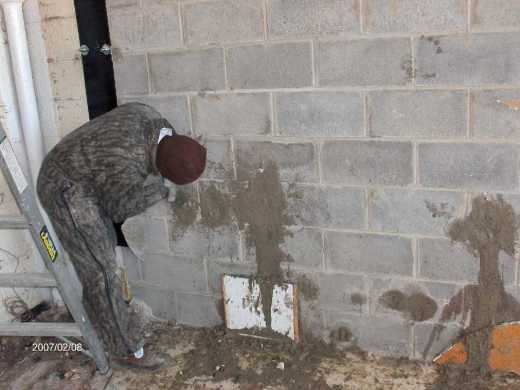

Rehabilitation of Commercial Building-3 in Wayne Michigan ... Picture 1
Here is Mike working on the West end of the North side block wall being worked on.



ANAND Enterprises project KubD1yae-101 Rehabilitation of Commercial Building in Wayne Michigan

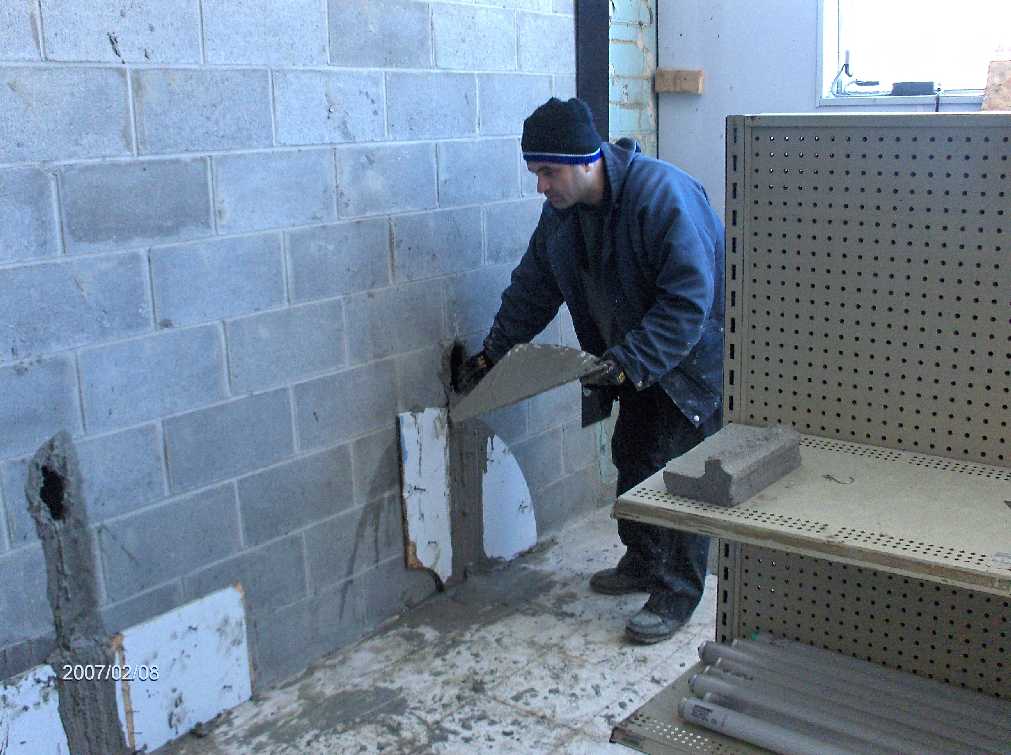

Rehabilitation of Commercial Building-3 in Wayne Michigan ... Picture 2
Hassan on the East end of the North side block wall being worked on.



ANAND Enterprises project KubD1yae-101 Rehabilitation of Commercial Building in Wayne Michigan

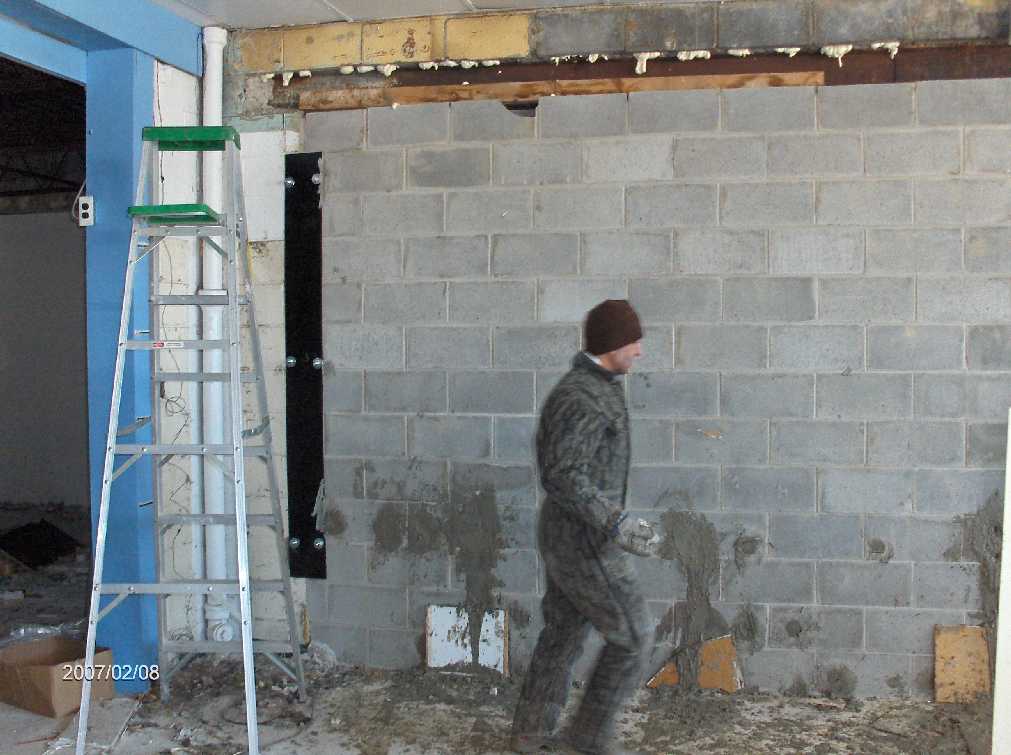

Rehabilitation of Commercial Building-3 in Wayne Michigan ... Picture 3
The West end steel plate fastening the new block wall to the existing block wall.



ANAND Enterprises project KubD1yae-101 Rehabilitation of Commercial Building in Wayne Michigan

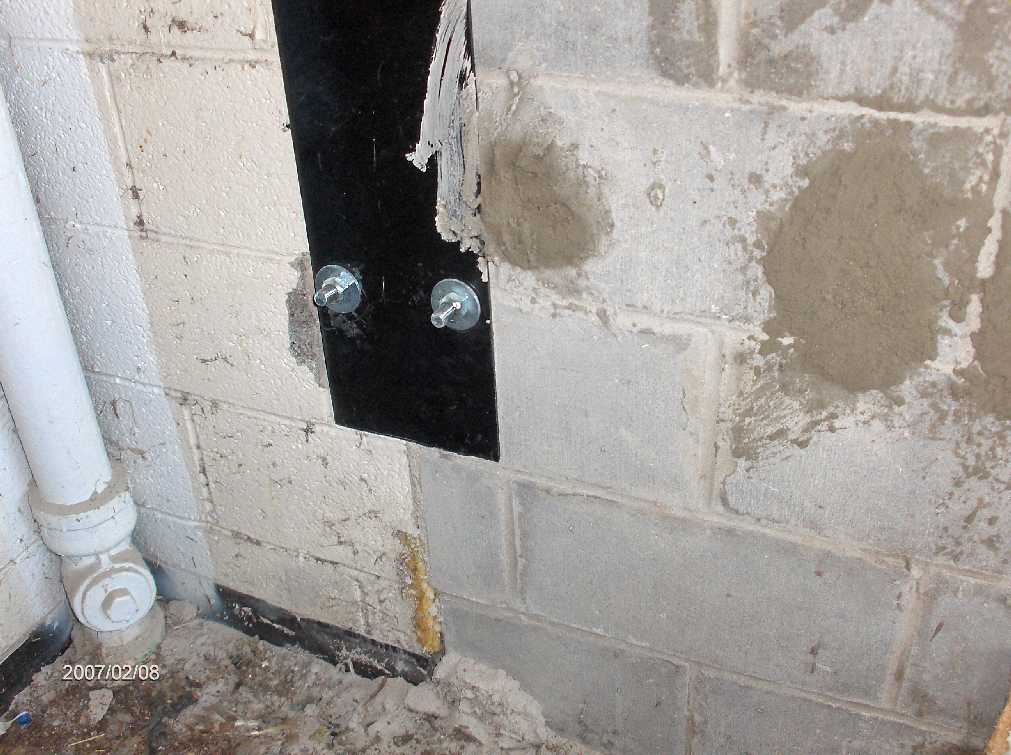

Rehabilitation of Commercial Building-3 in Wayne Michigan ... Picture 4

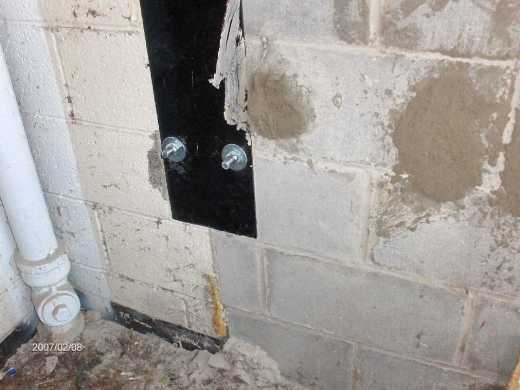

A close up of the through bolts in the fastening plate on the West end of the new block wall.



ANAND Enterprises project KubD1yae-101 Rehabilitation of Commercial Building in Wayne Michigan

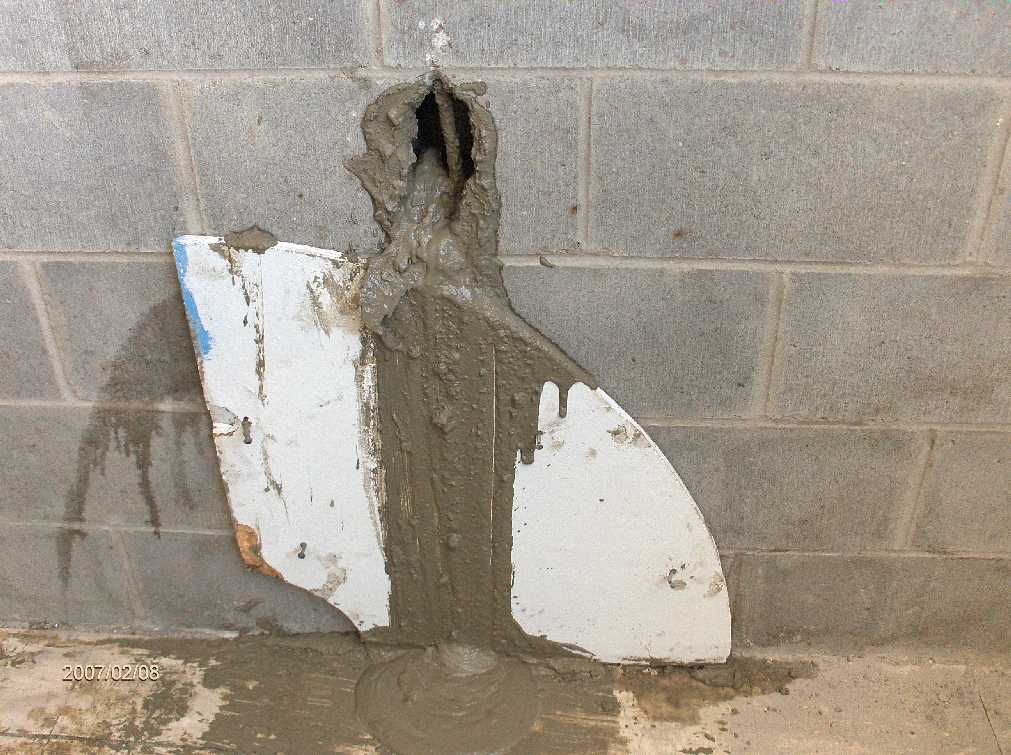

Rehabilitation of Commercial Building-3 in Wayne Michigan ... Picture 5
A shot of the dowel in the new block wall being grouted in



ANAND Enterprises project KubD1yae-101 Rehabilitation of Commercial Building in Wayne Michigan

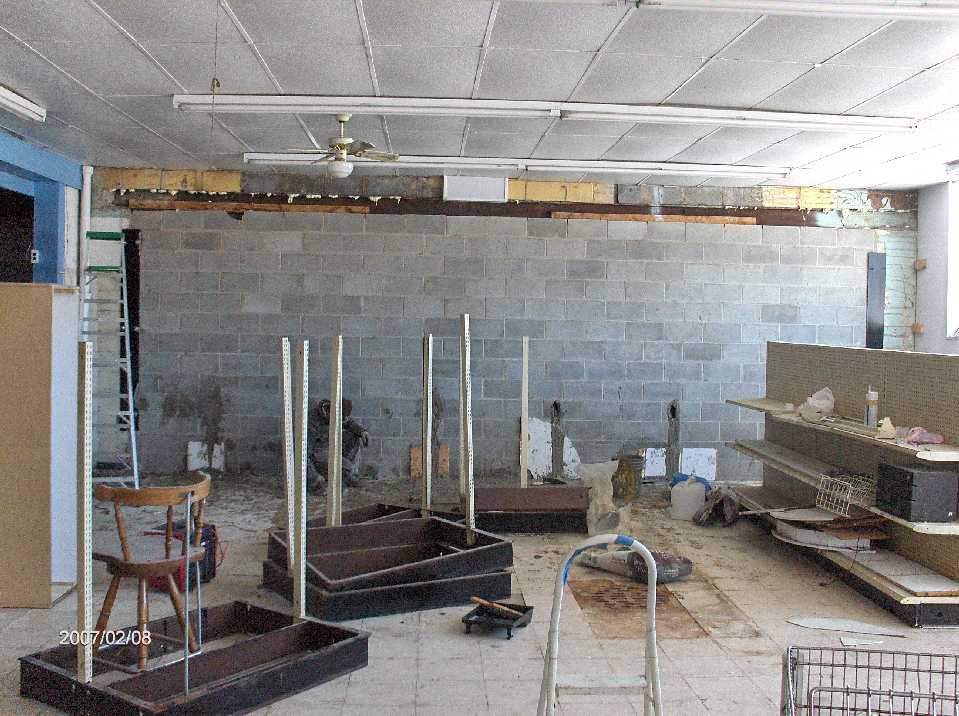

Rehabilitation of Commercial Building-3 in Wayne Michigan ... Picture 6
In this view we see the fastening plate -- one on the West side of the new block wall and one on the East side..



ANAND Enterprises project KubD1yae-101 Rehabilitation of Commercial Building in Wayne Michigan

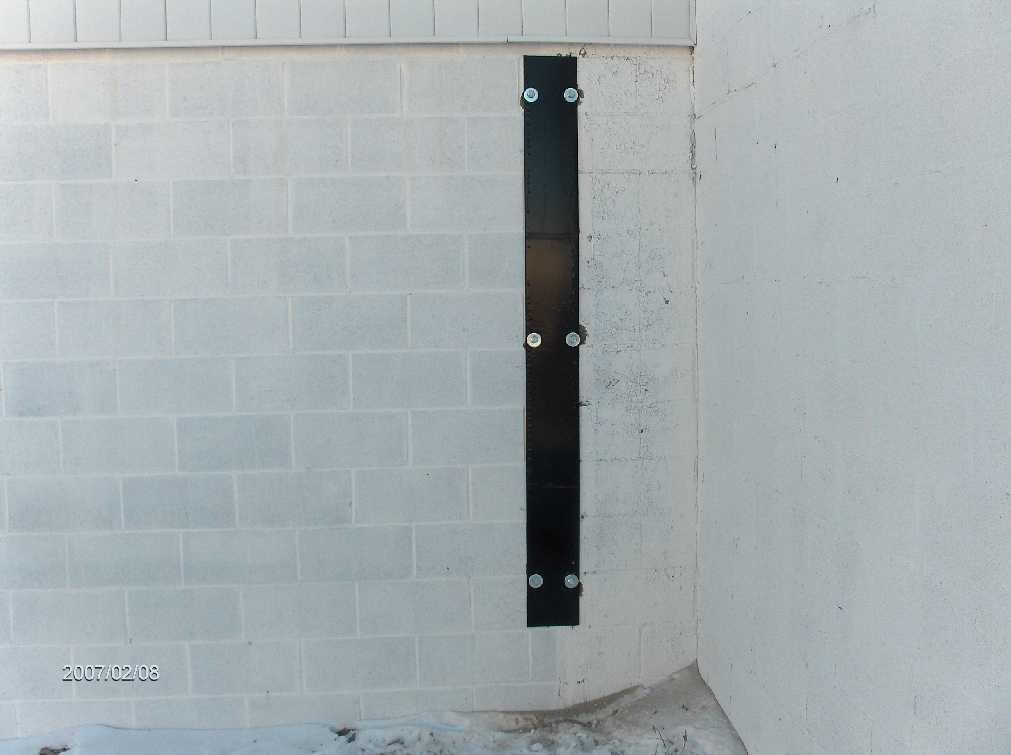

Rehabilitation of Commercial Building-3 in Wayne Michigan ... Picture 7
A shot of the fastening plate on the West end of the new block wall's outer face of the building.



ANAND Enterprises project KubD1yae-101 Rehabilitation of Commercial Building in Wayne Michigan

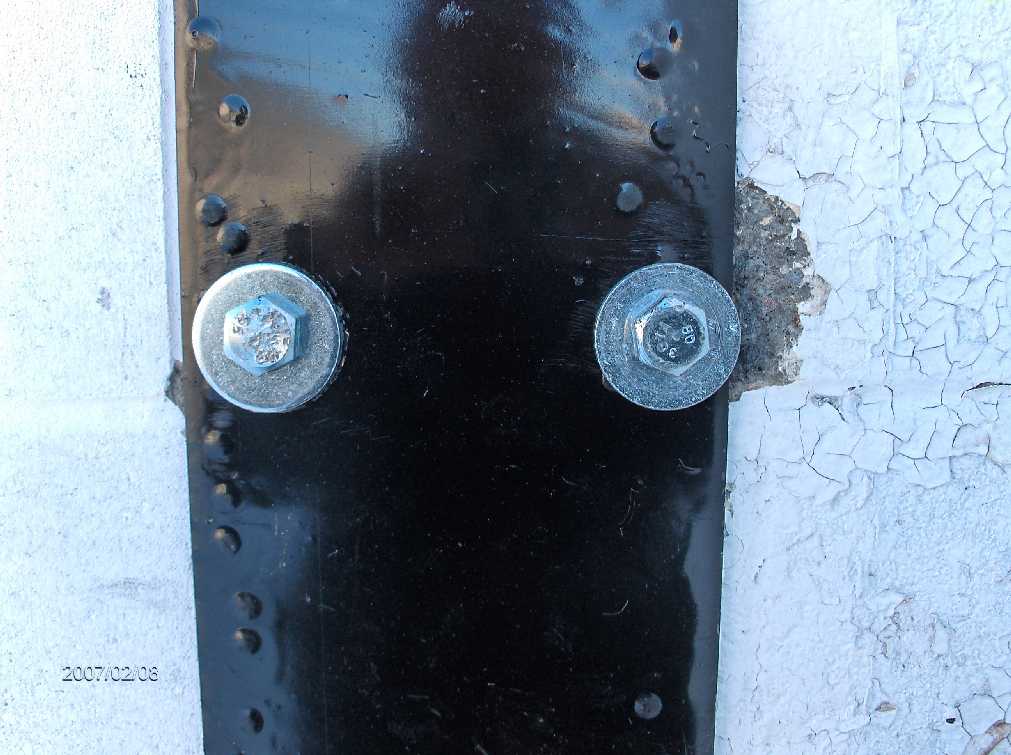

Rehabilitation of Commercial Building-3 in Wayne Michigan ... Picture 8
A closeup of the through bolt in the fastening plate on the West end of the new block wall's outer face of the building.



ANAND Enterprises project KubD1yae-101 Rehabilitation of Commercial Building in Wayne Michigan


beginning of Rehabilitation of Commercial Building-3 in Wayne Michigan Feb-12-2007 Update
