Basement-ICF-Walls_for-Stehr-House-in-Highland-Twp-Michigan
Oct-02-2006 Update
from our portfolio of Recent Projects

Our Recent-Projects Include New Construction As-Well-As Addition and Renovation of House, Commercial, Condo, Light-Industrial, Multi-Family Buildings, ...

The basement-slab-concrete-placement_for-Stehr-House-in-Highland-Twp-Michigan took place on Sep-29-2006. The saw cuts -- very carefully were made on Satuday Sep-29-2006. On Monday, October-02-2006 morning we had the ICF blocks and accessories dropped off at the site. And we started laying up the blocks. We are using Reddi-Wall forms -- these are 5 ft long, and 12" high.

It does help to have the concrete slab in place -- so that not only laying the first course is easier, the crew is working off a plane level surface and not out of mud and slush.

You will see from some pictures that I took at the end of the day, Dave Dotson, Matt Lincoln, and the crew made good progress -- this is with Dave Dotson not being 100 percent well with his leg hurting -- Good Job Guys!

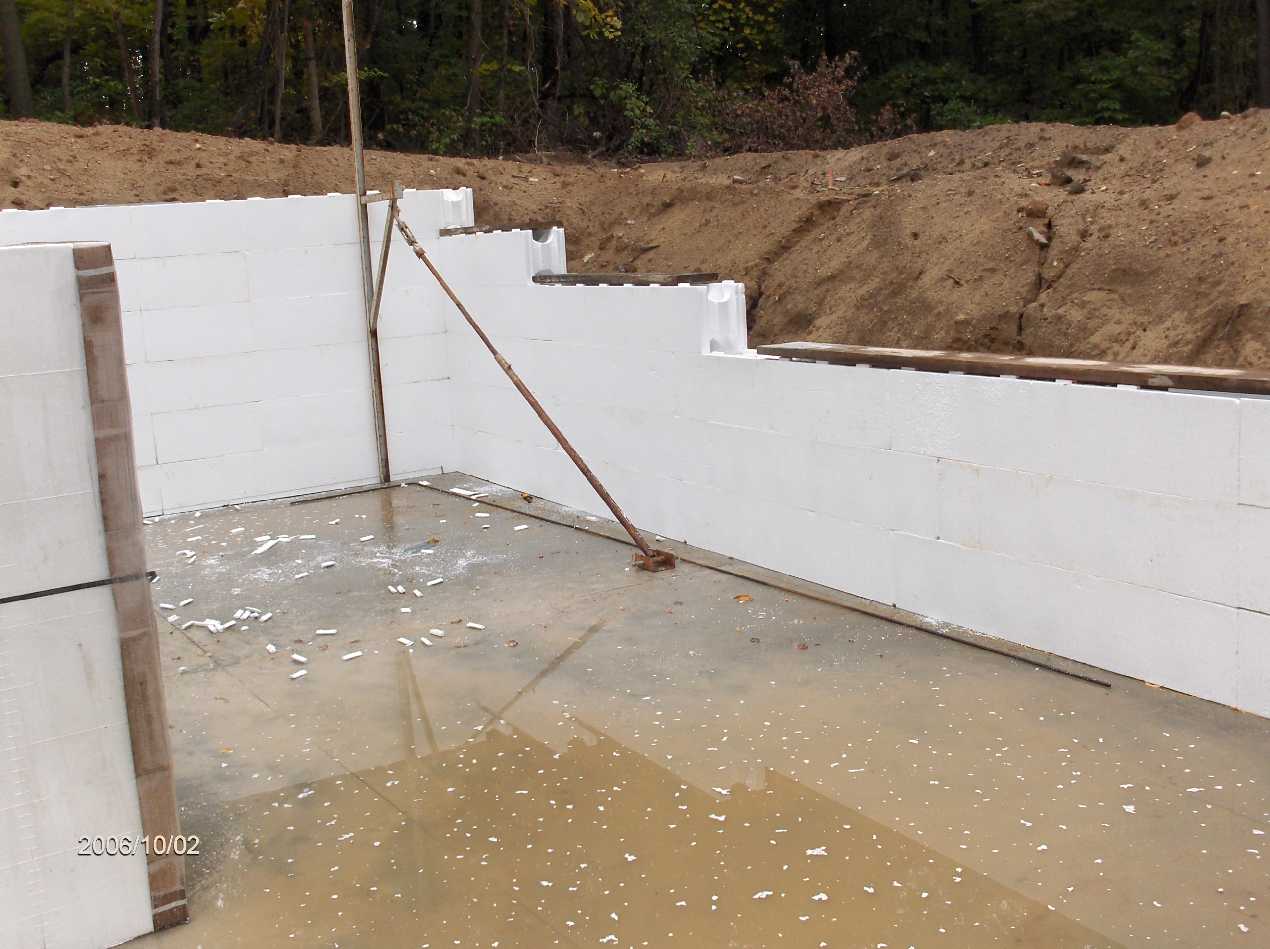

This is a shot of the overall icf-wall placed today, Oct-02-2006 -- not bad for a day's work when the blocks were delivered this morning, and it was raining this morning -- you will agree that we sure have a sincere and hard working crew ... Picture 1



ANAND Enterprises project SteG2yae-101 New ICF House for Gary and Pam Stehr in Highland Township Michigan

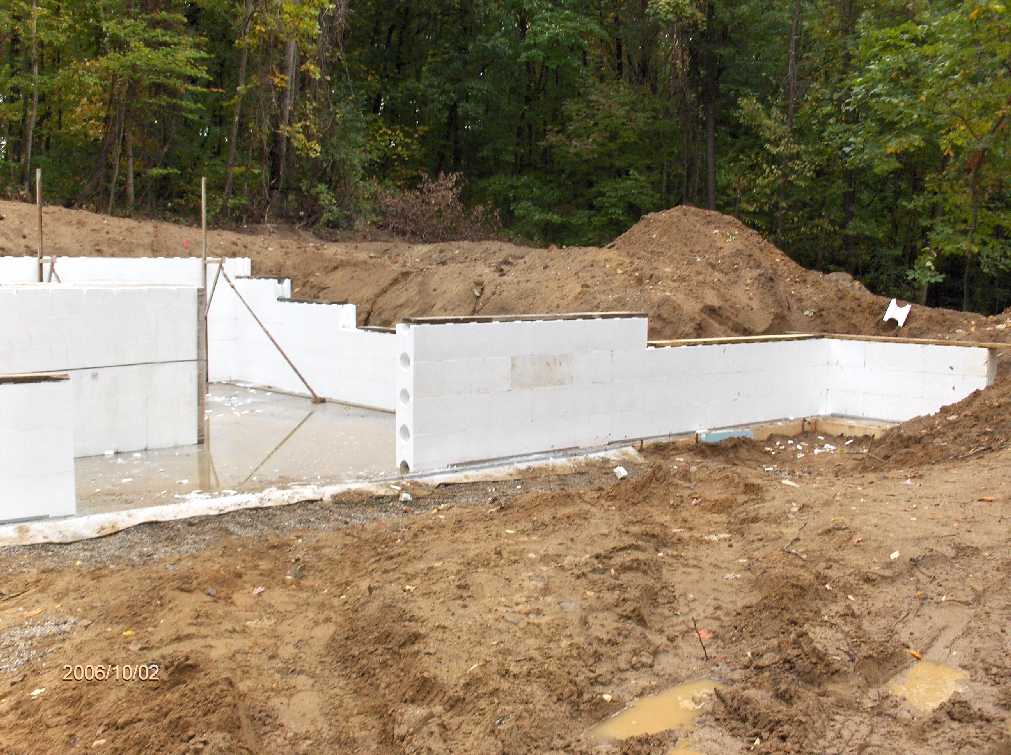

This picture shows the ICF wall forms on the North-West corner of the house ... Picture 2



ANAND Enterprises project SteG2yae-101 New ICF House for Gary and Pam Stehr in Highland Township Michigan

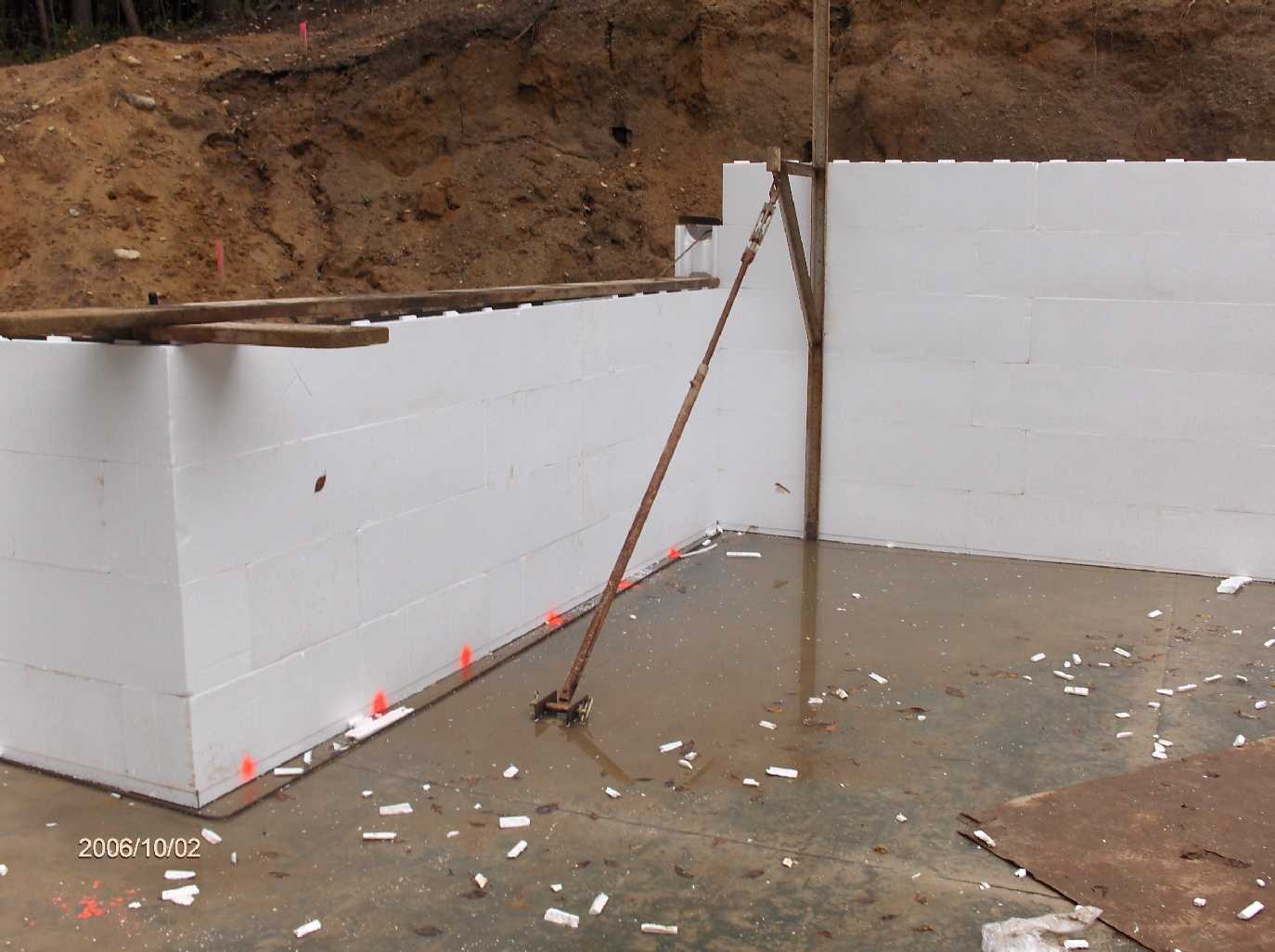

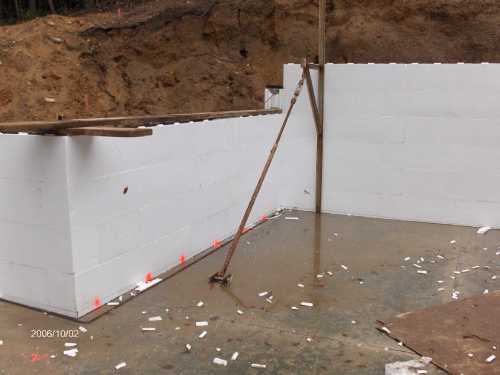

Here is a shot of the East wall at the North end with one of the braces installed. Notice the red marks on the bottom of the North wall and top of the Form-A-Drain to guide the crew where the brace can be anchored to the concrete without the danger of damaging any radiant heat tubing ... Picture 3



ANAND Enterprises project SteG2yae-101 New ICF House for Gary and Pam Stehr in Highland Township Michigan

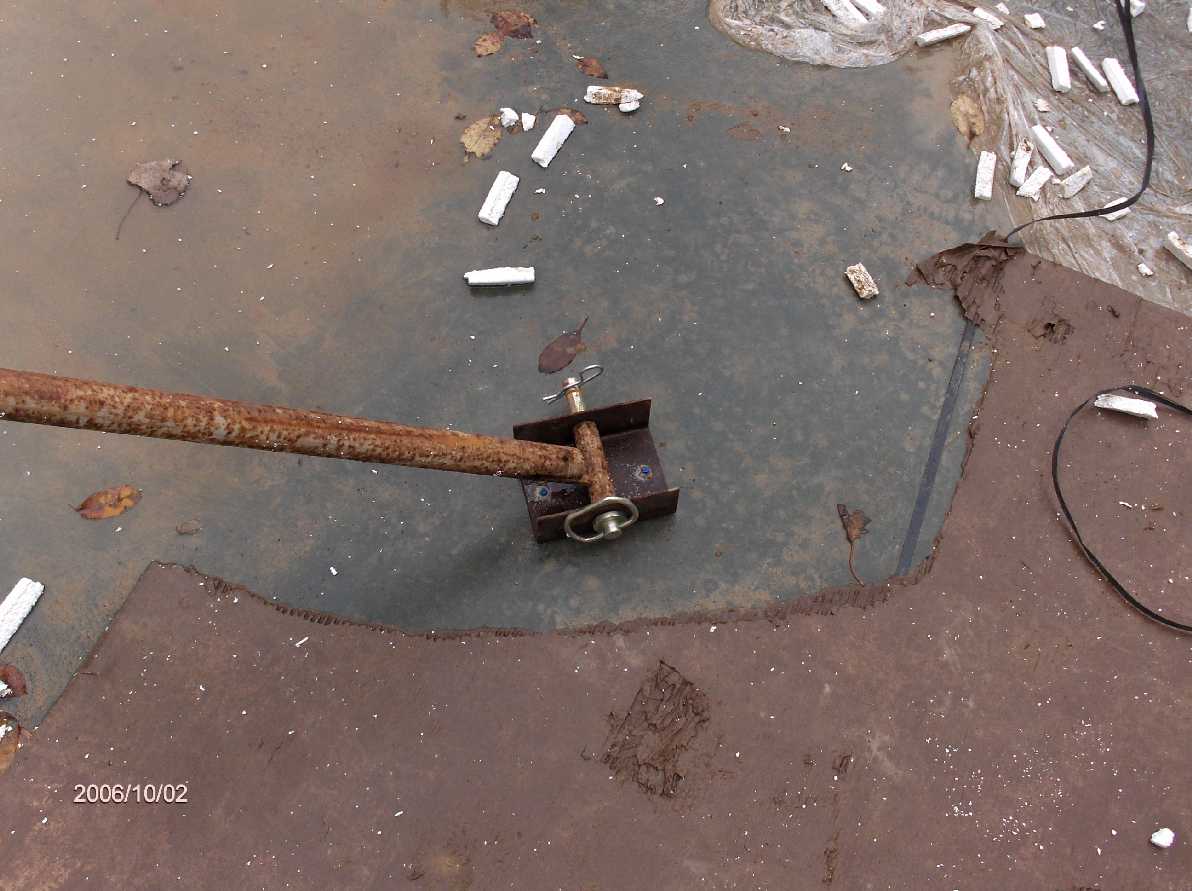

This is a shot showing where the bottom part of the brace has been tap-conned to the concrete slab ... Picture 4



ANAND Enterprises project SteG2yae-101 New ICF House for Gary and Pam Stehr in Highland Township Michigan

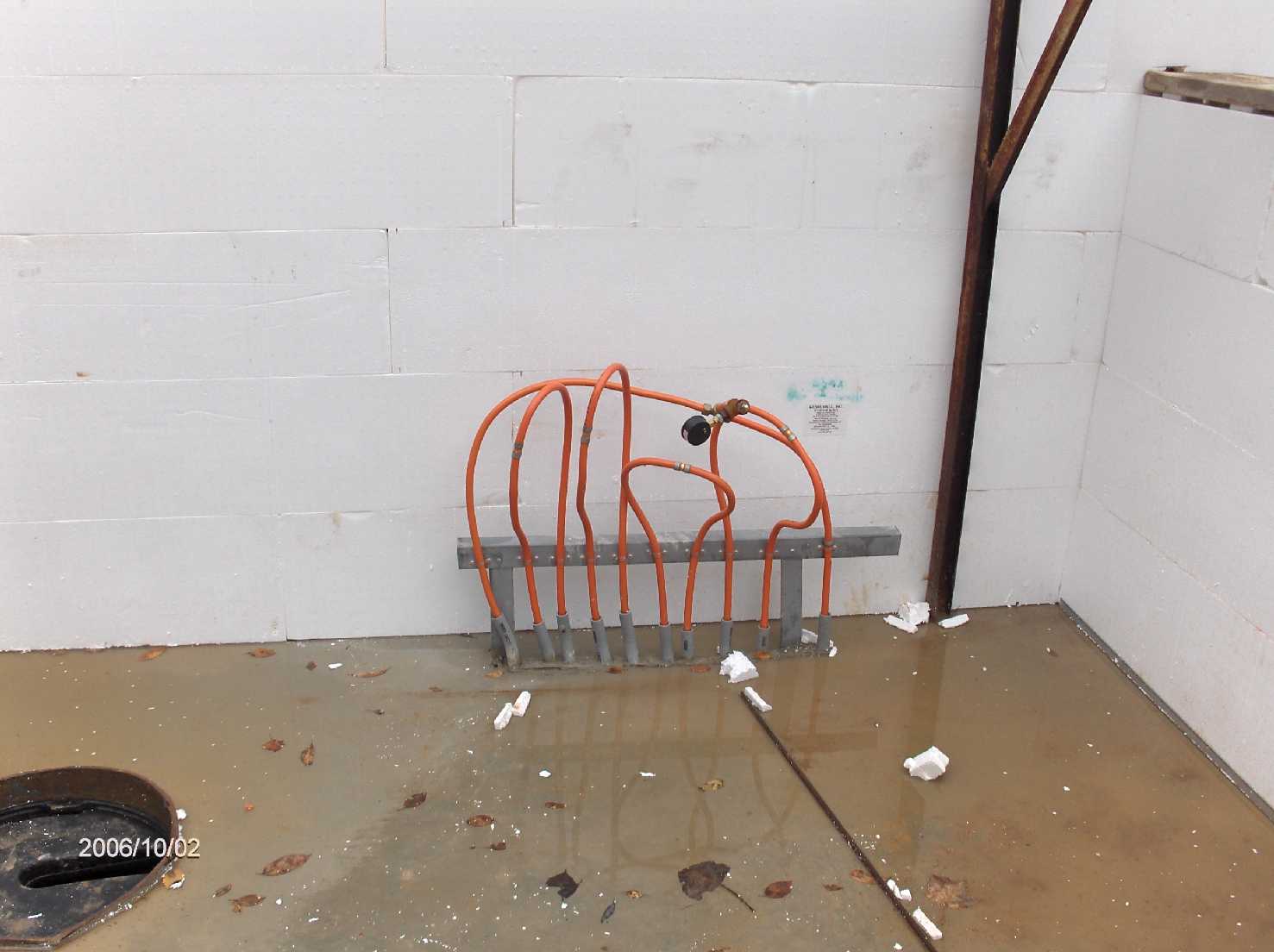

A shot of how the radiant tubing was sleeved and guided out of the concrete slab -- and of course out of the way of any brace or anchoring ... Picture 5



ANAND Enterprises project SteG2yae-101 New ICF House for Gary and Pam Stehr in Highland Township Michigan

A shot of the brace at the South-East corner of the ICF wall forms ... Picture 6



ANAND Enterprises project SteG2yae-101 New ICF House for Gary and Pam Stehr in Highland Township Michigan

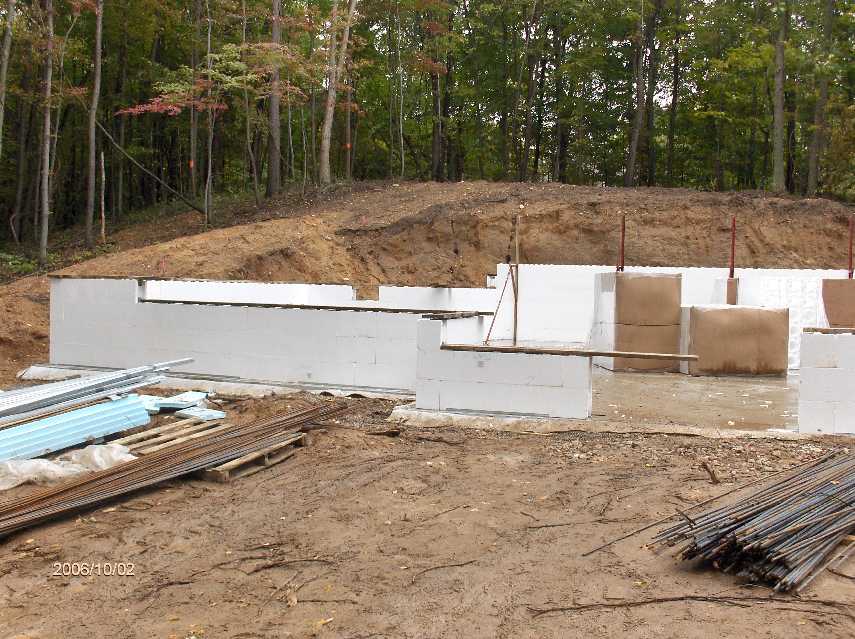

Here is a shot of the Forms for the walls at South West corner and for the retaining wall for the Porch area ... Picture 7



ANAND Enterprises project SteG2yae-101 New ICF House for Gary and Pam Stehr in Highland Township Michigan

beginning of Basement-ICF-Walls_for-Stehr-House-in-Highland-Twp-Michigan
