Rosie-O-Gradys_Building-Addition-Electrical-Wiring-Installation-RosO1-101

Project RosO1-101
from our portfolio of Recent Projects

Our Recent-Projects Include New Construction As-Well-As Addition and Renovation of House, Commercial, Condo, Light-Industrial, Multi-Family Buildings, ...

Rosie O'Grady's Restaurant & Pub on 23 Mile Road in Chesterfield Twp Michigan -- Building Addition and Upgrading

Our last post talked about Progress Report as of Sep-12-2008.

For electrical wiring installation in ICF walls, a chase for installing boxes, wire, rigid conduit, and flex conduit is cut into the face foam of the wall. The chase is cut with a router, hot knife, a chain saw, or a similar tool depending upon the comfort level and the experience of the installer. The wire/rigid conduit/flex is embedded into the chase and held in place with foam adhesive or cut foam packing.

Wiring in stud walls is installed according to the industry standard state-of-the-art.

Here are some typical pictures of electrical wiring installed in ICF walls. I will keep you posted with more details as we go along.

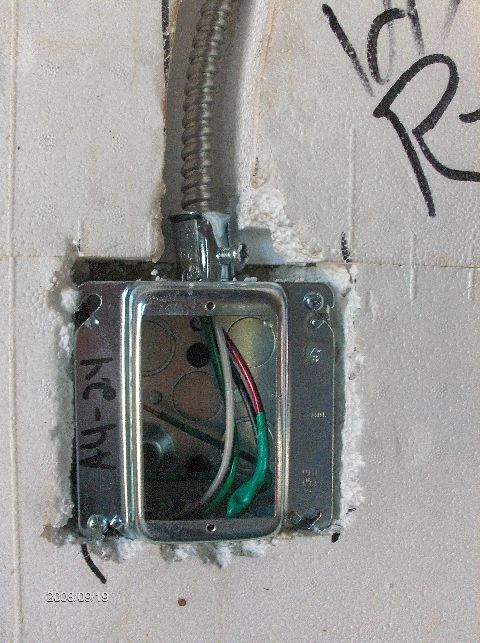

Rosie-O-Gradys_Building-Addition-Electrical-Wiring-Installation-RosO1-101 ... Picture 1

Rosie-O-Gradys_Building-Addition-Electrical-Wiring-Installation-RosO1-101-Picture-1


ANAND Enterprises Project RosO1-101

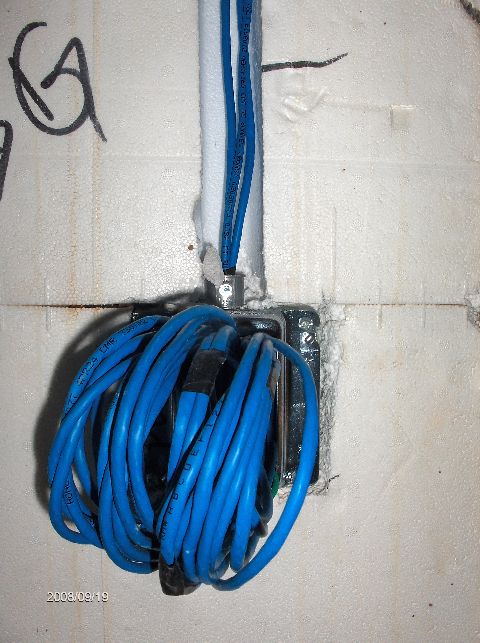

Rosie-O-Gradys_Building-Addition-Electrical-Wiring-Installation-RosO1-101 ... Picture 2

Rosie-O-Gradys_Building-Addition-Electrical-Wiring-Installation-RosO1-101-Picture-2


ANAND Enterprises Project RosO1-101

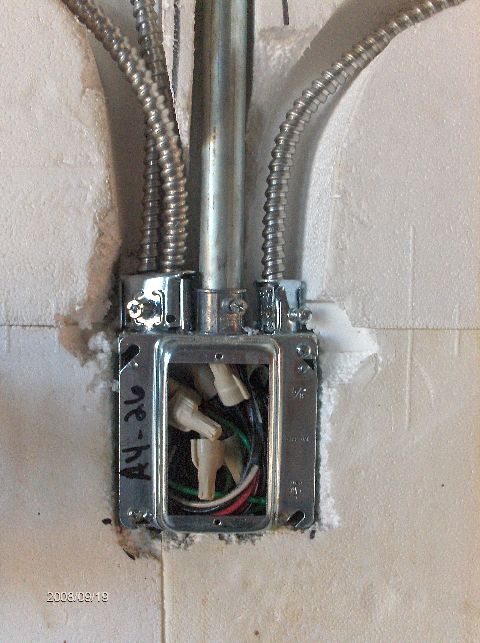

Rosie-O-Gradys_Building-Addition-Electrical-Wiring-Installation-RosO1-101 ... Picture 3

Rosie-O-Gradys_Building-Addition-Electrical-Wiring-Installation-RosO1-101-Picture-3


ANAND Enterprises Project RosO1-101

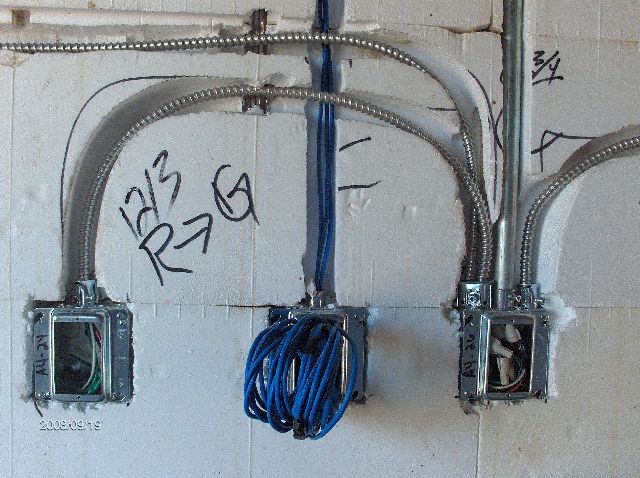

Rosie-O-Gradys_Building-Addition-Electrical-Wiring-Installation-RosO1-101 ... Picture 4

Rosie-O-Gradys_Building-Addition-Electrical-Wiring-Installation-RosO1-101-Picture-4


ANAND Enterprises Project RosO1-101

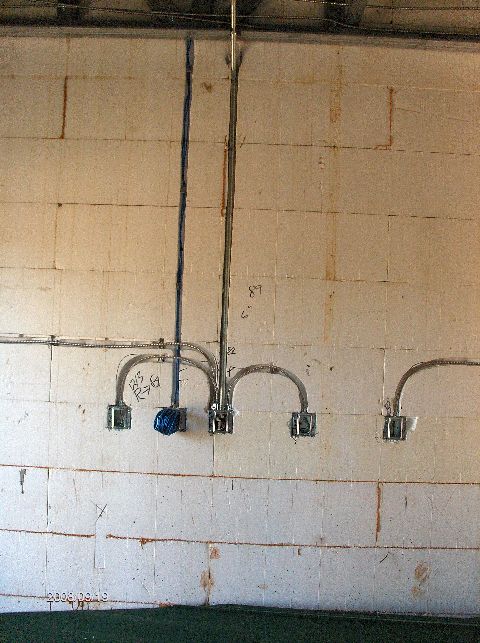

Rosie-O-Gradys_Building-Addition-Electrical-Wiring-Installation-RosO1-101 ... Picture 5

Rosie-O-Gradys_Building-Addition-Electrical-Wiring-Installation-RosO1-101-Picture-5


ANAND Enterprises Project RosO1-101
