ICF-House-New-Construction-Framing-Issues
In response to a call from the contractor and the home-owner, I visited the project site and I met the home owner,
the contractor, and the Building Official, to look at the situation with the
framing for the house.
I did not have any involvement in the design or the construction of this project until the call. When I am dealing with an after the fact situation like this one, I do the following
- review the project documents
- interview the owner, the contractor, the trades people, the suppliers, and others as required
- conduct a walk-down inspection of the facility to determine how things were done
and additionally if requested, I also do the following
- locate/create documents and/or reports needed by the Building Official
- then work with the Building Official to help close out any open items to ensure satisfactory resolution of
related items
I am helping close out items 3, 5, 6, 7, 8, and 9 on Building Official's
Notice of Violations.
The open items I am going to help close out can be generally categorized as
- ICF Headers
- Joist Layout for First Floor
- Steel Floor Framing
- Attachment of Rim Joist to ICF walls
- General Inspection of Structural Items
I have addressed each of the preceding items by
- conducting a walk-down of the entire facility
- taking pictures of the typical structural items (the pictures are presented in this post for reference)
- discussing the related issues with the responsible trades personnel
- generating needed documents for the Building Official
ICF Headers
person interviewed: Robert Martin of Steel Studs & Joists
The headers over openings for doors, windows, and arch-ways are reinforced concrete beams minimum 12" deep with a minimum of 1 - #5 bar at the bottom, and #3 ties at 10" c/c. The header beams are designed to carry all the loading imposed on the header beam.
Joist Layout for First Floor
person interviewed: Robert Martin of Steel Studs & Joists

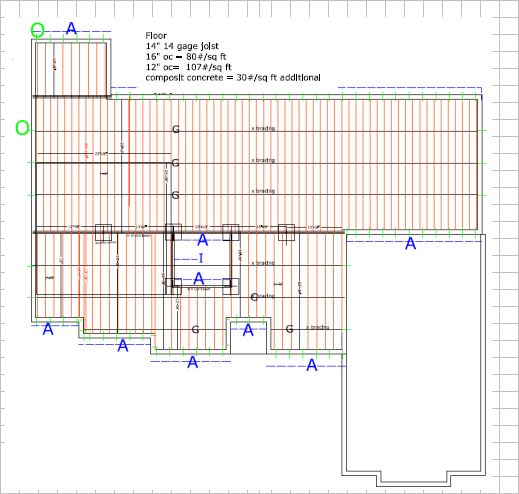

The First Floor Open Web Steel Joists are 14" deep 14 Gage as shown in Figure 1 supplied by Steel Studs & Joists Inc.
In the next post, I will take up the Steel Floor Framing
ICF-House-New-Construction-Framing-Issues-Project-EneE1OmaE1-101 ... Figure 1
