General Inspection of Structural Items

person interviewed: Robert Martin of Reddi Wall Inc.

The ICF walls are 10" thick Reddi-Wall -- a screen-grid type ICF wall. The basement walls are reinforced with
nominally #4 @ 10" c/c vertically and #4 @ 12" c/c horizontally. At the upper level, the walls are reinforced with
nominally #4 @ 20" c/c vertical and #3 @ 24" c/c horizontal bars

reference document: Reddi-Wall Standard Drawing

Roof Trusses

person interviewed: Matt Lincoln Building crew

looked at and verified that the nailing pattern matched the manufacturer supplied drawings

related document: EneE1OmaE1yae-101-03d supplied by truss manufacturer

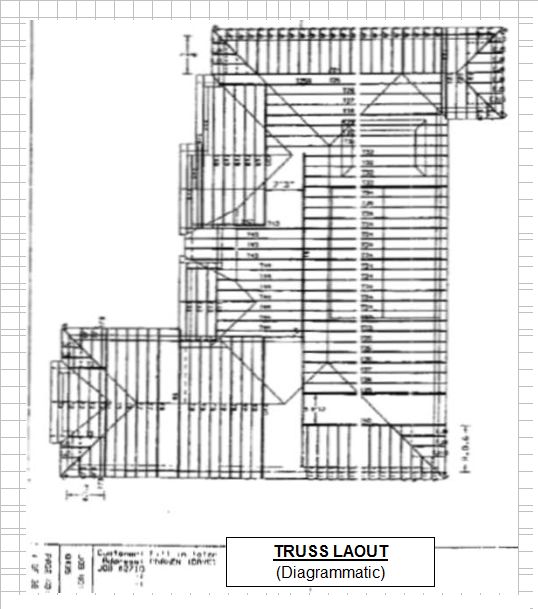

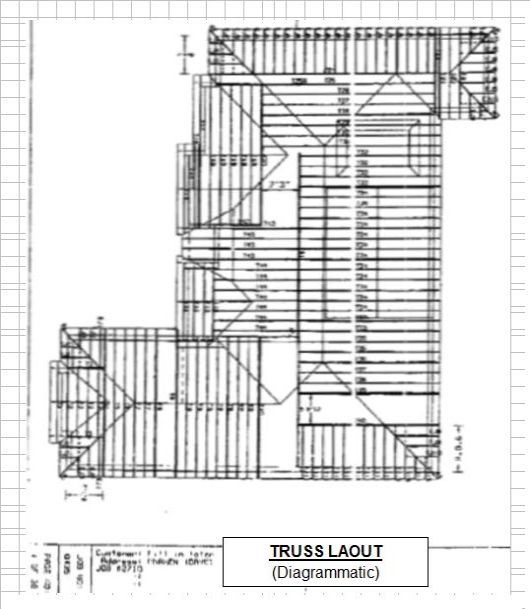

The documents EneE1OmaE1yae-101-03d is presented here as Figures 1.




ICF-House-New-Construction-Framing-Issues-Part3-Project-EneE1OmaE1-101 ... Figure 1

ICF-House-New-Construction-Framing-Issues-Part3-Project-EneE1OmaE1-101-Figure-1
