Cutting-Door-Opening-in-An-Existing-ICF-Wall

Project: Cutting-Door-Opening-in-An-Existing-ICF-Wall (HatD1yae-101-03m-eebn)
from our portfolio of Recent Projects

Our Recent-Projects Include New Construction As-Well-As Addition and Renovation of House, Commercial, Condo, Light-Industrial, Multi-Family Buildings, ...

This project involved cutting a door opening in an existing ICF wall of a walkout basement. The owner wanted to park one of his classic cars in the basement of his ICF house.

So we had to saw cut an opening for an 8 ft wide x 7 ft high door. I proposed using a steel channel for jambs and the header and anchor the steel channel to the concrete of the ICF walls using expansion anchors. I also proposed welding a steel plate underneath the header channel, or using a shelf angle to carry the facia brick.

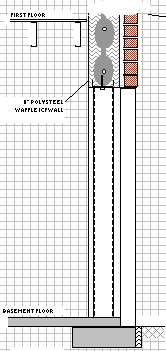

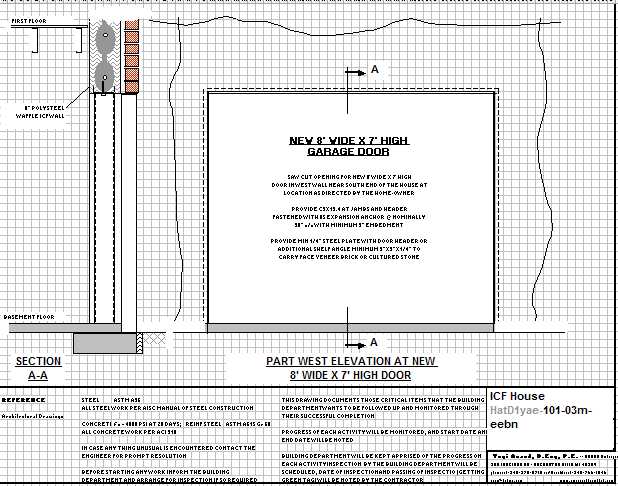

I am presenting here a couple of pictures showing a cross section of the wall and the proposed design details.




Cutting-Door-Opening-in-An-Existing-ICF-Wall ... Picture 1

Cutting-Door-Opening-in-An-Existing-ICF-Wall-Picture-1


ANAND Enterprises project Cutting-Door-Opening-in-An-Existing-ICF-Wall (HatD1yae-101-03m-eebn)





Cutting-Door-Opening-in-An-Existing-ICF-Wall ... Picture 2

Cutting-Door-Opening-in-An-Existing-ICF-Wall-Picture-1


ANAND Enterprises project Cutting-Door-Opening-in-An-Existing-ICF-Wall (HatD1yae-101-03m1-eebn)



beginning of Cutting-Door-Opening-in-An-Existing-ICF-Wall
