Here an 8 inch panel BuildBlock ICF wall had been built. A new 8 inch panel BuildBlock had to be fastened across -- a T connection if you will.

I specified drilling and grouting some rebar dowels into the existing wall and then lapping them with the horizontal reinforcing steel of the new wall.

In another post I have discussed Joining-New-4-inch-ICF-Panel-Wall-To-8-inch-ICF-Panel-Wall-In-Place

and New-8-Inch-Panel-Wall-And-Footing-To-Existing-8-Inch-Panel-Wall

and ICF-4-Inch-Panel-Wall-And-Footing-To-Existing-8-Inch-Panel-Wall

I present here some pictures showing both the new and the existing 8 inch panel BuildBlock ICF walls -- I will keep you posted with more progress pictures.

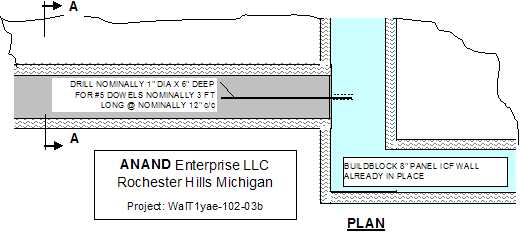

Buildblock-8-Ich-Panel-Wall-To-Be-Fastened-To-8-Inch-Panel-Buildblock-Wall-Already-In-Place ... Picture 1

Buildblock-8-Ich-Panel-Wall-To-Be-Fastened-To-8-Inch-Panel-Buildblock-Wall-Already-In-Place-Picture-1


ANAND Enterprises project Buildblock-8-Ich-Panel-Wall-To-Be-Fastened-To-8-Inch-Panel-Buildblock-Wall-Already-In-Place (WalT1yae-102-03b-eebn)

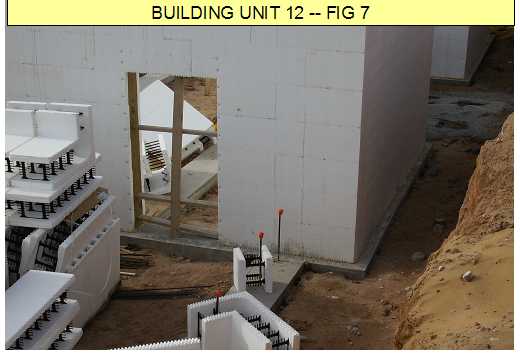

Buildblock-8-Ich-Panel-Wall-To-Be-Fastened-To-8-Inch-Panel-Buildblock-Wall-Already-In-Place ... Picture 2

Buildblock-8-Ich-Panel-Wall-To-Be-Fastened-To-8-Inch-Panel-Buildblock-Wall-Already-In-Place-Picture-2


ANAND Enterprises project Buildblock-8-Ich-Panel-Wall-To-Be-Fastened-To-8-Inch-Panel-Buildblock-Wall-Already-In-Place (WalT1yae-102-03b-eebn)

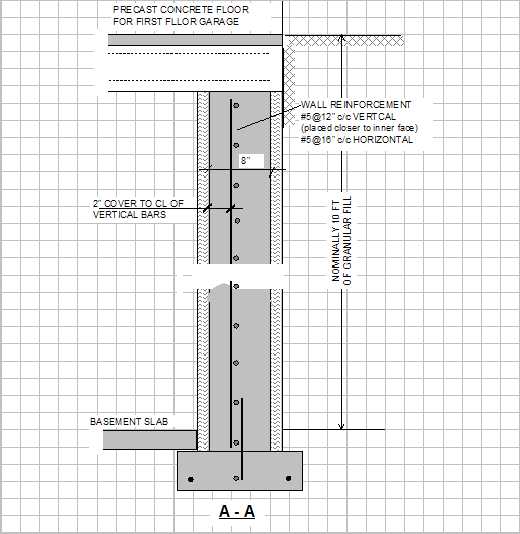

Buildblock-8-Ich-Panel-Wall-To-Be-Fastened-To-8-Inch-Panel-Buildblock-Wall-Already-In-Place ... Picture 3

Buildblock-8-Ich-Panel-Wall-To-Be-Fastened-To-8-Inch-Panel-Buildblock-Wall-Already-In-Place-Picture-3


ANAND Enterprises project Buildblock-8-Ich-Panel-Wall-To-Be-Fastened-To-8-Inch-Panel-Buildblock-Wall-Already-In-Place (WalT1yae-102-03b-eebn)
